(35.737.AE[04]) - VAR - 481064 - ARM, CYLINDER, LINES

Запчасти Case CX160D LC (35.737.AE[04]) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS

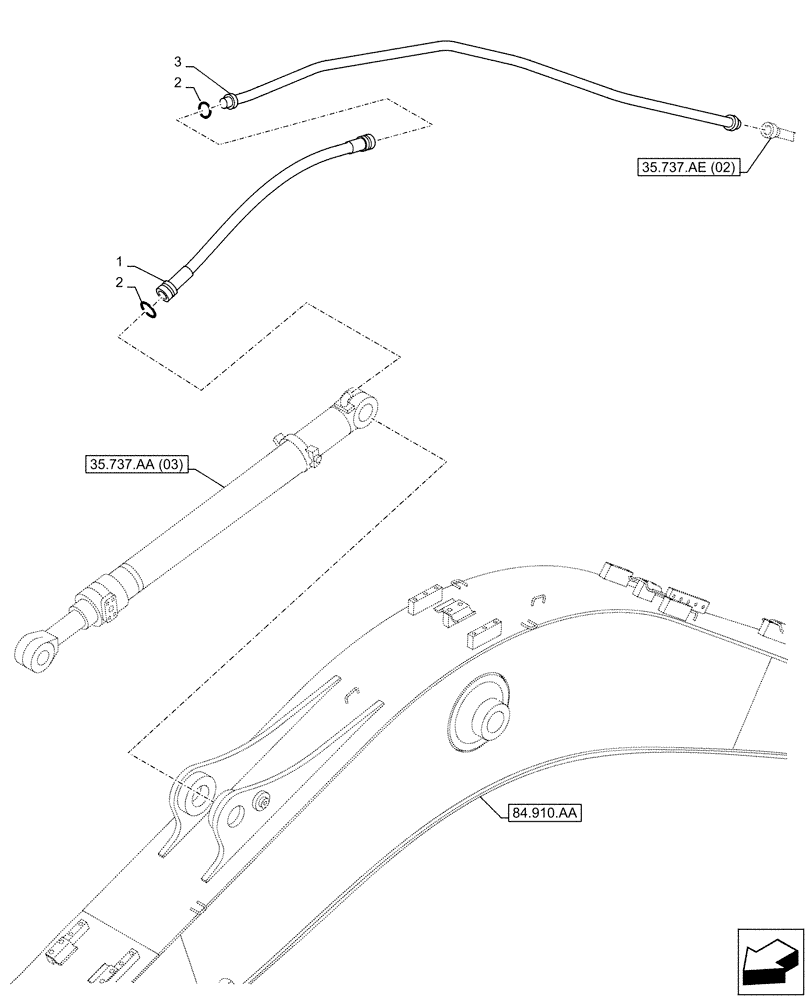

Схема запчастей Case CX160D LC - (35.737.AE[04]) - VAR - 481064 - ARM, CYLINDER, LINES (35) - HYDRAULIC SYSTEMS
2
2
84.910.aa
1
3
35.737.aa (03)
35.737.ae (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLV11420

HOSE ASSY.,19.00 mm ID x 900.00 mm

900mm

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

3

KLV12500Y2

HYD TUBE,27.2mm X 20.8mm Adaptor

1шт.

Выбрано товаров: 3
