(35.736.AA[01]) - VAR - 481858 - LIFT CYLINDER, BOOM, MOUNTING

Запчасти Case CX160D LC (35.736.AA[01]) - VAR - 481858 - LIFT CYLINDER, BOOM, MOUNTING (35) - HYDRAULIC SYSTEMS

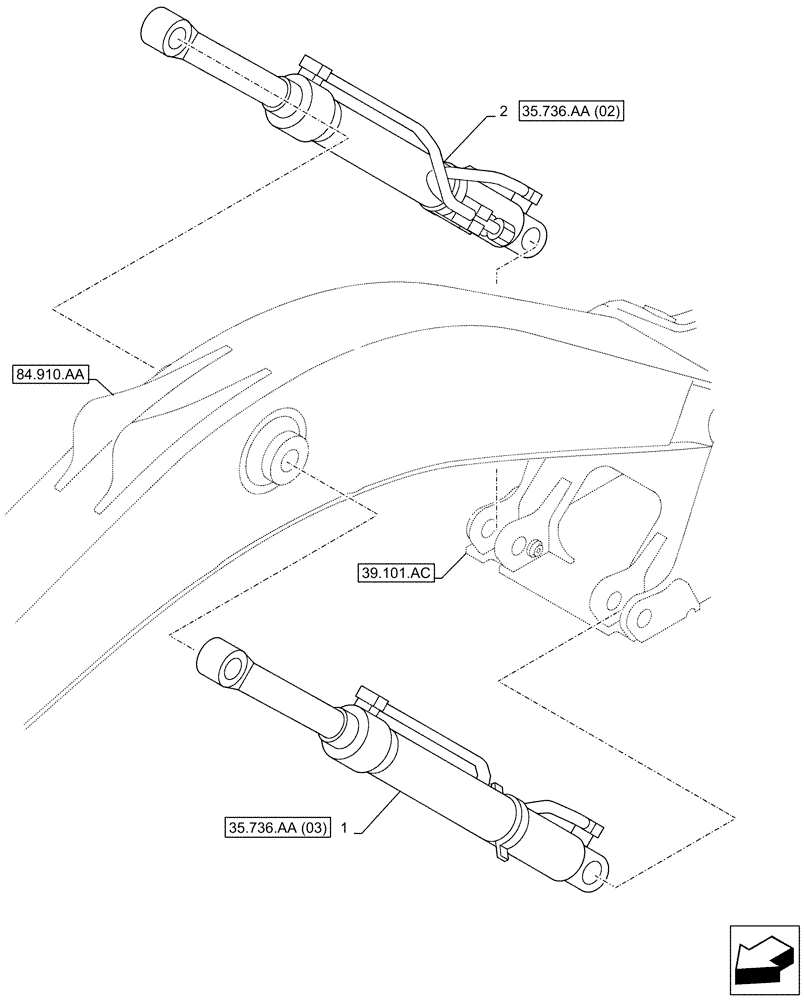

Схема запчастей Case CX160D LC - (35.736.AA[01]) - VAR - 481858 - LIFT CYLINDER, BOOM, MOUNTING (35) - HYDRAULIC SYSTEMS
2
39.101.ac
1
84.910.aa
35.736.aa (03)
35.736.aa (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLV10980

HYDRAULIC CYLINDER

LH, ASSY

1шт.

See Also Figure 84.910.AD (01)

1шт.

2

KLV10960

HYDRAULIC CYLINDER

RH, ASSY

1шт.

See Also Figure 84.910.AD (01)

1шт.

Выбрано товаров: 4
