(35.360.AL[02]) - VAR - 461865, 461868, 461869, 461871 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, COMPONENTS

Запчасти Case CX160D LC (35.360.AL[02]) - VAR - 461865, 461868, 461869, 461871 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, COMPONENTS (35) - HYDRAULIC SYSTEMS

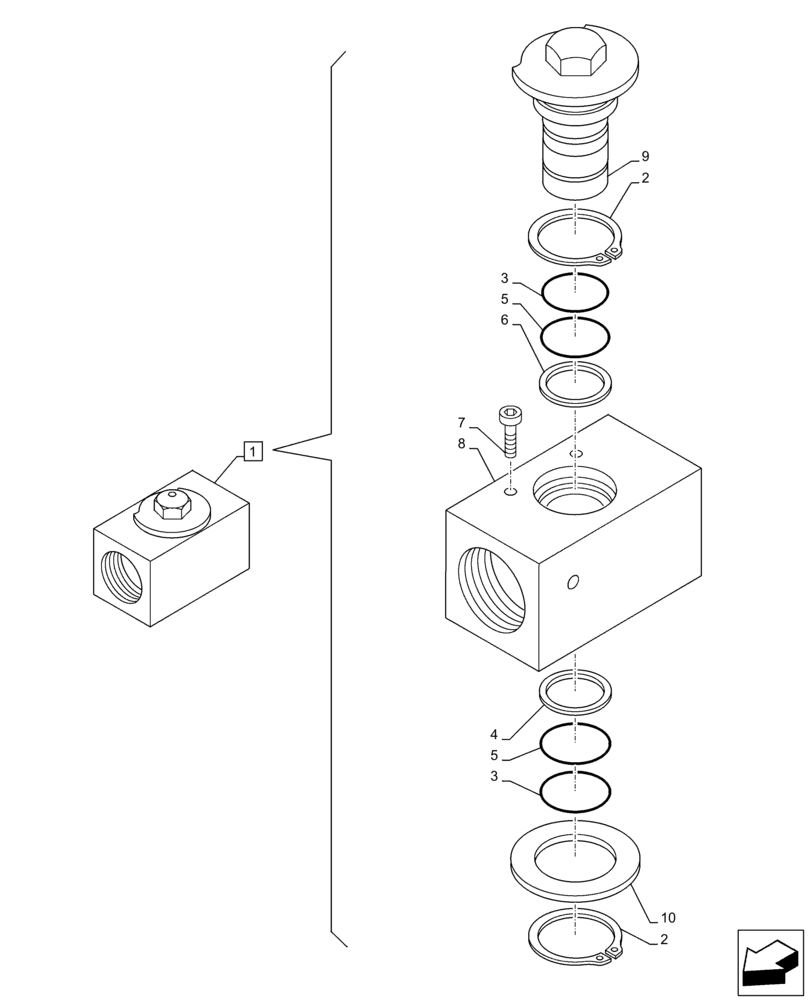

Схема запчастей Case CX160D LC - (35.360.AL[02]) - VAR - 461865, 461868, 461869, 461871 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW, COMPONENTS (35) - HYDRAULIC SYSTEMS
3
5
10
2
9
7
5
4
3
2
8
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHV10710

VALVE

ASSY, Incl 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

Lock Ring, Incl in 1

2шт.

3

154503A1

O-RING

2шт.

4

154001A1

BACK-UP RING

1шт.

5

154528A1

O-RING

2шт.

6

153982A1

BACK-UP RING

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

Выбрано товаров: 10
