(35.360.AL[01]) - VAR - 461865, 461868, 461869, 461871 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW

Запчасти Case CX160D LC (35.360.AL[01]) - VAR - 461865, 461868, 461869, 461871 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS

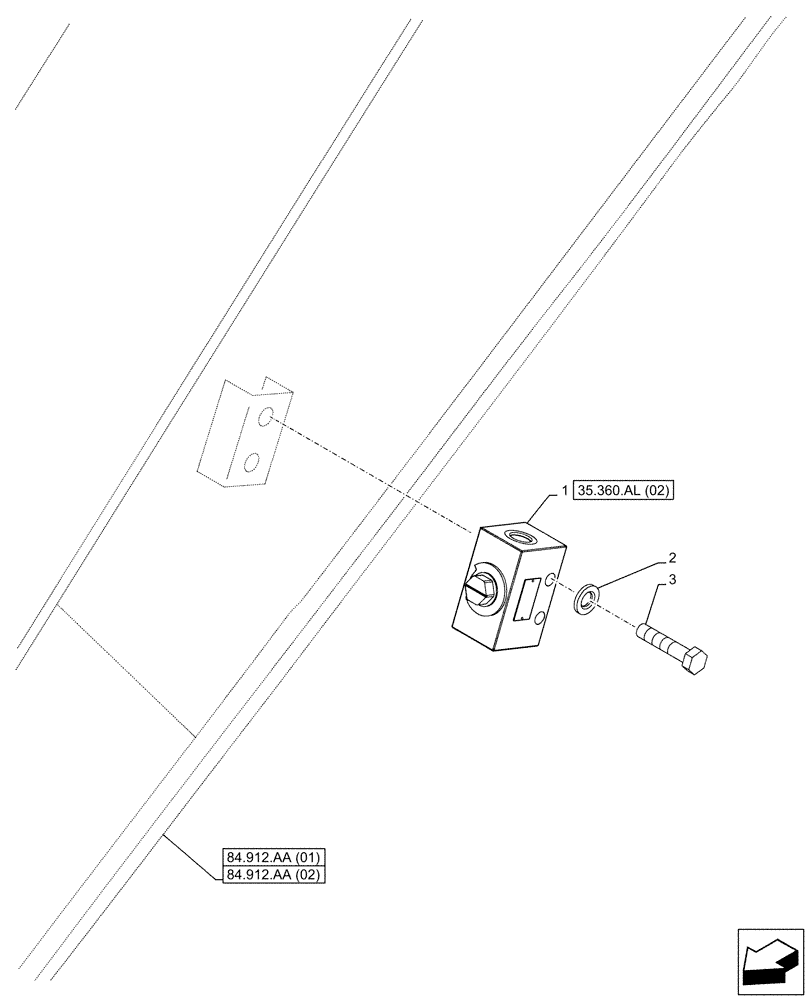

Схема запчастей Case CX160D LC - (35.360.AL[01]) - VAR - 461865, 461868, 461869, 461871 - ARM, STOP, VALVE, HAMMER CIRCUIT, SHEARS, HIGH FLOW (35) - HYDRAULIC SYSTEMS
84.912.aa (02)
35.360.al (02)
2
84.912.aa (01)
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHV10710

VALVE

ASSY, RH/LH

2шт.

2

150811A1

WASHER

RH/LH

4шт.

3

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

M12 x 75mm, RH/LH

4шт.

Выбрано товаров: 3
