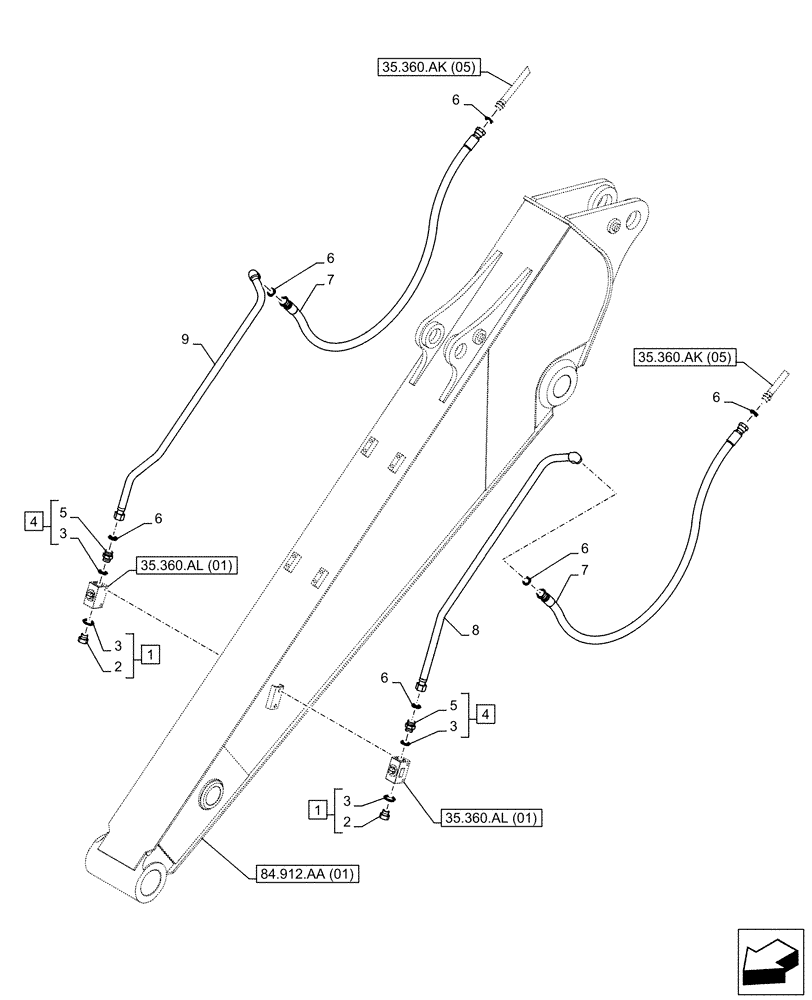

Запчасти Case CX160D LC (35.360.AK[06]) - VAR - 461865, 461868, 461869, 461871 - ARM, LINE, HAMMER, SHEARS, HIGH FLOW (ARM L=2.6M) (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX160D LC - (35.360.AK[06]) - VAR - 461865, 461868, 461869, 461871 - ARM, LINE, HAMMER, SHEARS, HIGH FLOW (ARM L=2.6M) (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5366095.png)
6
3
6
1
35.360.ak (05)
3
35.360.ak (05)
9
4
3
4
5
6
8
35.360.al (01)
5
6
3
6
1
2
7
2
84.912.aa (01)
6
7
35.360.al (01)
№
Артикул
Название
Примечание
Количество
1
152924A1
PLUG
ASSY G3/4", Incl 2, 3 (Qty 1)
2шт.
2
NSS
NOT SOLD SEPARAT
Plug, Incl in 1
2шт.
3
150542A1
O-RING
4шт.
4
KHJ1348
ADAPTER
ASSY, Incl 5, 3 (Qty 1)
2шт.
5
NSS
NOT SOLD SEPARAT
2шт.
6
KHJ1360
O-RING,0.07" Thk x 0.739" ID
6шт.
7
KNV13720
HYDRAULIC HOSE,19mm ID x 1200mm L
19mm ID x 1200mm
2шт.
8
KLV12400
HYD TUBE,27.2mm X 20.8mm Adaptor and elbow
1шт.
9
KLV12410
HYD TUBE,27.2mm X 20.8mm Adaptor
1шт.
Выбрано товаров: 9
