(35.360.AK[04]) - VAR - 461868 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.360.AK[04]) - VAR - 461868 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

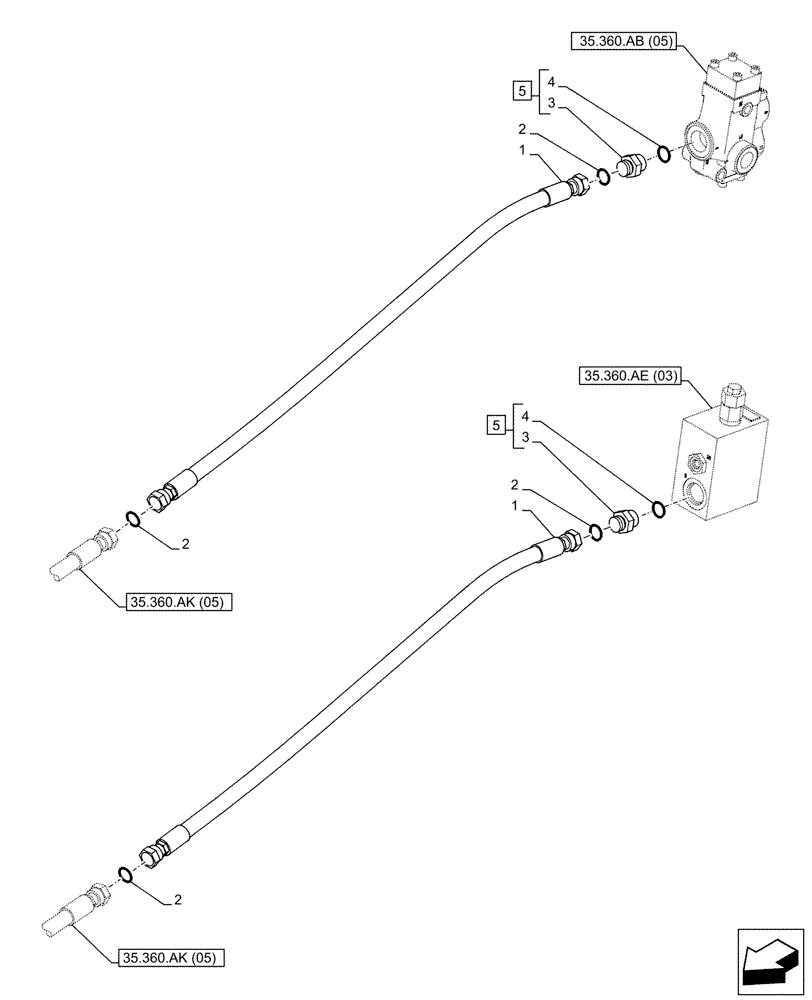

Схема запчастей Case CX160D LC - (35.360.AK[04]) - VAR - 461868 - BOOM, LINES, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.360.ab (05)
2
1
2
4
1
4
2
3
5
5
3
2
35.360.ae (03)
35.360.ak (05)
35.360.ak (05)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

2шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

3

NSS

NOT SOLD SEPARAT

Fitting, Incl in 5

2шт.

4

152211A1

O-RING

2шт.

5

KHJ1941

FITTING

ASSY, Incl 3 - 4

2шт.

Выбрано товаров: 5
