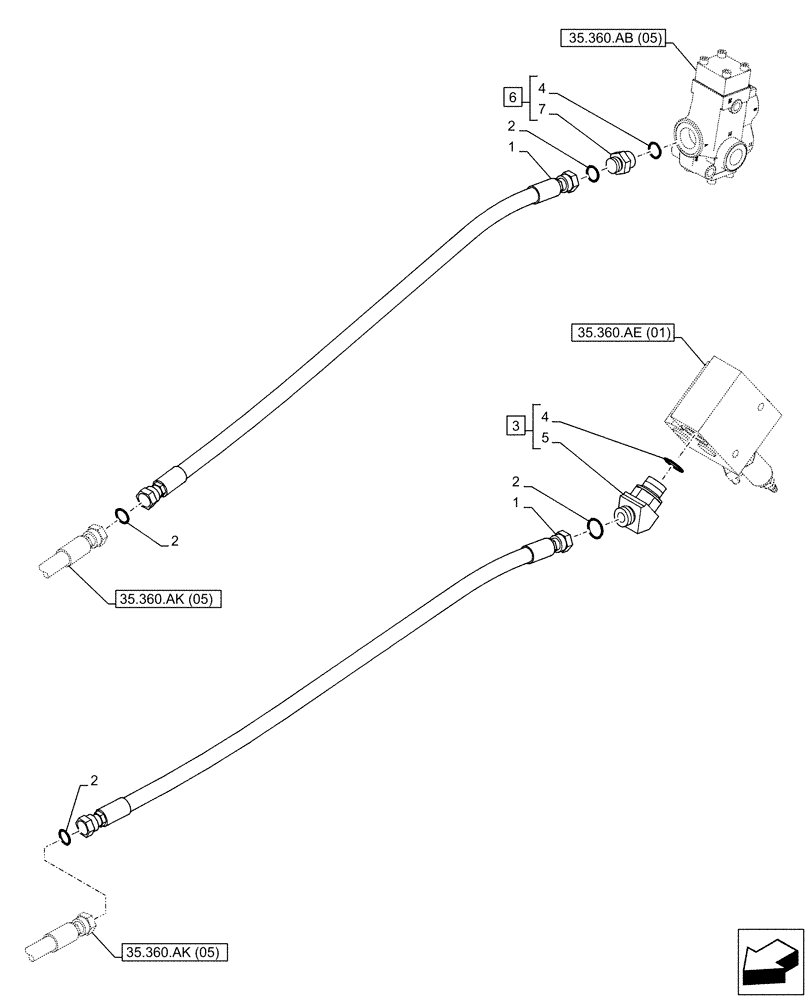

Запчасти Case CX160D LC (35.360.AK[03]) - VAR - 461869 - BOOM, LINES, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX160D LC - (35.360.AK[03]) - VAR - 461869 - BOOM, LINES, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5368262.png)
4
2
4
2
5
2
35.360.ak (05)
7
3
1
35.360.ab (05)
6
35.360.ak (05)
35.360.ae (01)
2
1
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
KLJ11690
HOSE ASSY.,19.00 mm ID x 1250.00 mm
19mm ID x 1250mm
2шт.
2
KHJ1360
O-RING,0.07" Thk x 0.739" ID
4шт.
3
KHJ16290
ELBOW
ASSY, Incl 4 (Qty 1), 5
1шт.
4
152211A1
O-RING
2шт.
5
NSS
NOT SOLD SEPARAT
45°Fitting, Incl in 3
1шт.
6
KHJ1941
FITTING
ASSY, Incl 4(Qty 1), 7
1шт.
7
NSS
NOT SOLD SEPARAT
Fitting, Incl in 6
1шт.
