Запчасти Case CX160D LC (35.360.AJ[12]) - VAR - 461868, 461869 - SOLENOID VALVE, LINES, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

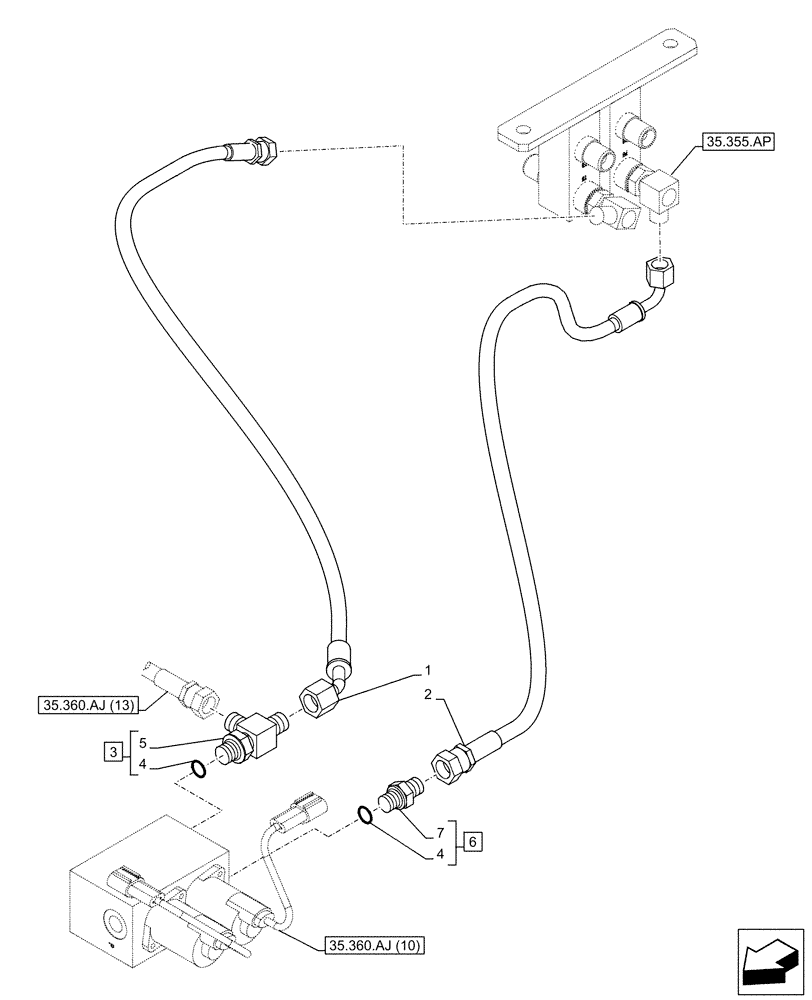

![Схема запчастей Case CX160D LC - (35.360.AJ[12]) - VAR - 461868, 461869 - SOLENOID VALVE, LINES, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5370440.png)
35.360.aj (10)
4
6
3
4
2
5
35.360.aj (13)
35.355.ap
7
1
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
KHJ12210
HOSE ASSY.
6mm ID x 620mm
1шт.
2
KHJ2087
HYDRAULIC HOSE,800.00 mm
6mm ID x 800mm
1шт.
3
159497A1
TEE
ASSY, G1/4" x G1/4" x G1/4", Incl 4 (Qty 1), 5
1шт.
4
150960A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
5
NSS
NOT SOLD SEPARAT
Tee, Incl in 3
1шт.
6
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 7
1шт.
7
NSS
NOT SOLD SEPARAT
Fitting, Incl in 6
1шт.
Выбрано товаров: 7
