(35.360.AJ[07]) - VAR - 461871 - HAMMER, SHEARS, SOLENOID VALVE, LINES, W/ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.360.AJ[07]) - VAR - 461871 - HAMMER, SHEARS, SOLENOID VALVE, LINES, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

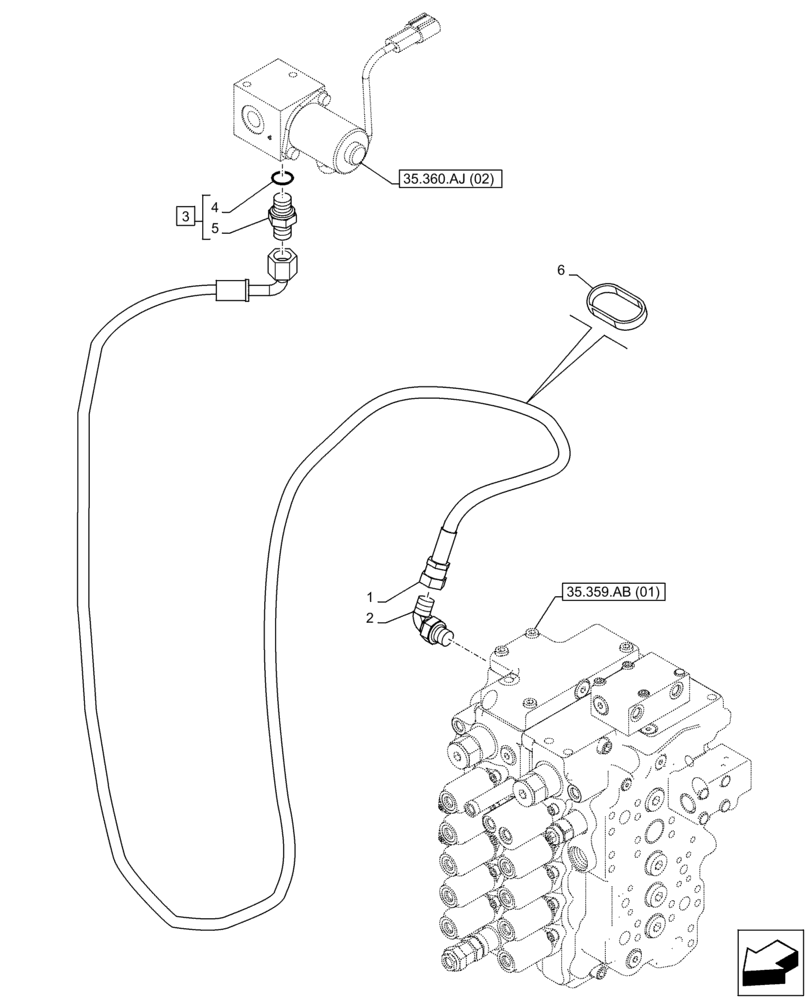

Схема запчастей Case CX160D LC - (35.360.AJ[07]) - VAR - 461871 - HAMMER, SHEARS, SOLENOID VALVE, LINES, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
6
4
5
1
3
2
35.360.aj (02)
35.359.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ11500

HYDRAULIC HOSE,6.35 mm ID x 3600.00 mm

6mm ID x 3600mm

1шт.

2

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 3, 4

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 2

1шт.

6

150496A1

MOUNTING CLIP

250mm

1шт.

Выбрано товаров: 6
