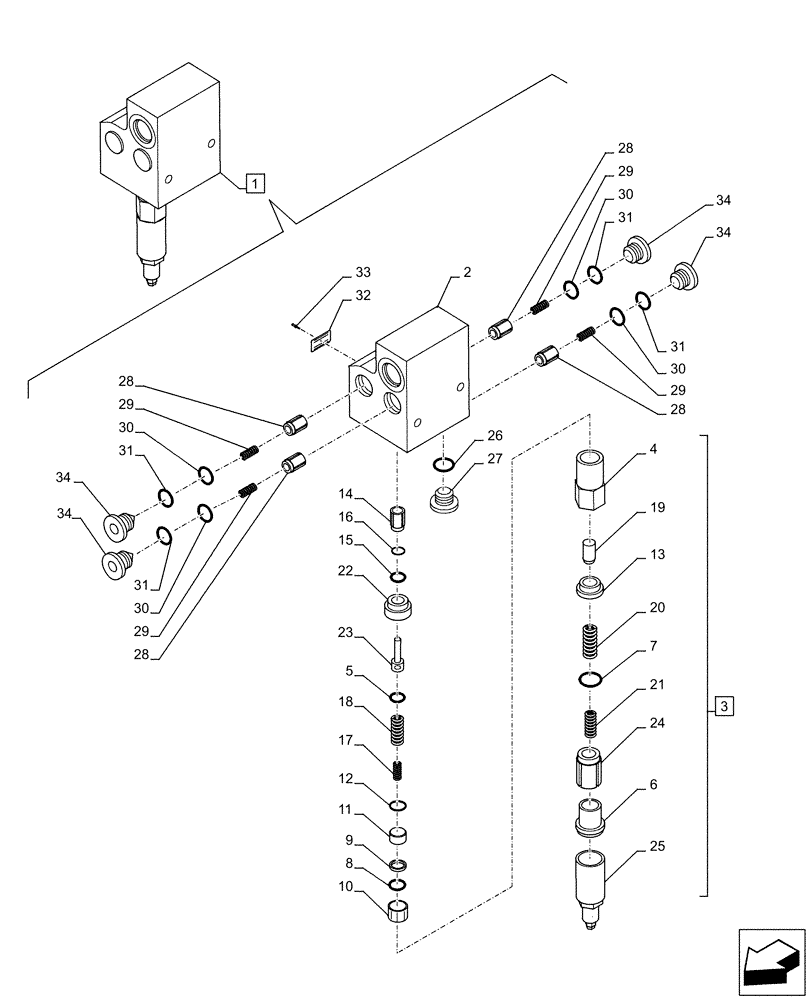

Запчасти Case CX160D LC (35.360.AE[02]) - VAR - 461869 - SELECTOR VALVE, HAMMER CIRCUIT, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KHJ27370

VALVE

ASSY, Incl 2 - 34

1шт.

2

NSS

NOT SOLD SEPARAT

Case, Incl in 1

1шт.

3

LJ019780

VALVE

ASSY, Incl 2 - 24

1шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

5

154503A1

O-RING

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

7

154508A1

O-RING

1шт.

8

154482A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Back-up, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Filter, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Stopper, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Seat, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Plunger, Incl in 1

1шт.

15

154462A1

O-RING

1шт.

16

NSS

NOT SOLD SEPARAT

Ring, Back-up, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Spring , Compression, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Spring , Compression, Incl in 1

1шт.

19

NSS

NOT SOLD SEPARAT

Poppet, Incl in 1

1шт.

20

NSS

NOT SOLD SEPARAT

Spring , Compression, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Spring , Compression, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Seat, Incl in 1

1шт.

23

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

24

NSS

NOT SOLD SEPARAT

Solenoid, Incl in 1

1шт.

25

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

26

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

27

LK00015

PLUG

2шт.

28

LJ019790

PLUNGER

4шт.

29

LG007590

COMPRESSION SPRING

4шт.

30

154491A1

O-RING

4шт.

31

154490A1

O-RING

4шт.

32

NSS

NOT SOLD SEPARAT

Nameplate, Incl in 1

1шт.

33

NSS

NOT SOLD SEPARAT

Rivet Parker, Incl in 1

2шт.

34

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

4шт.
