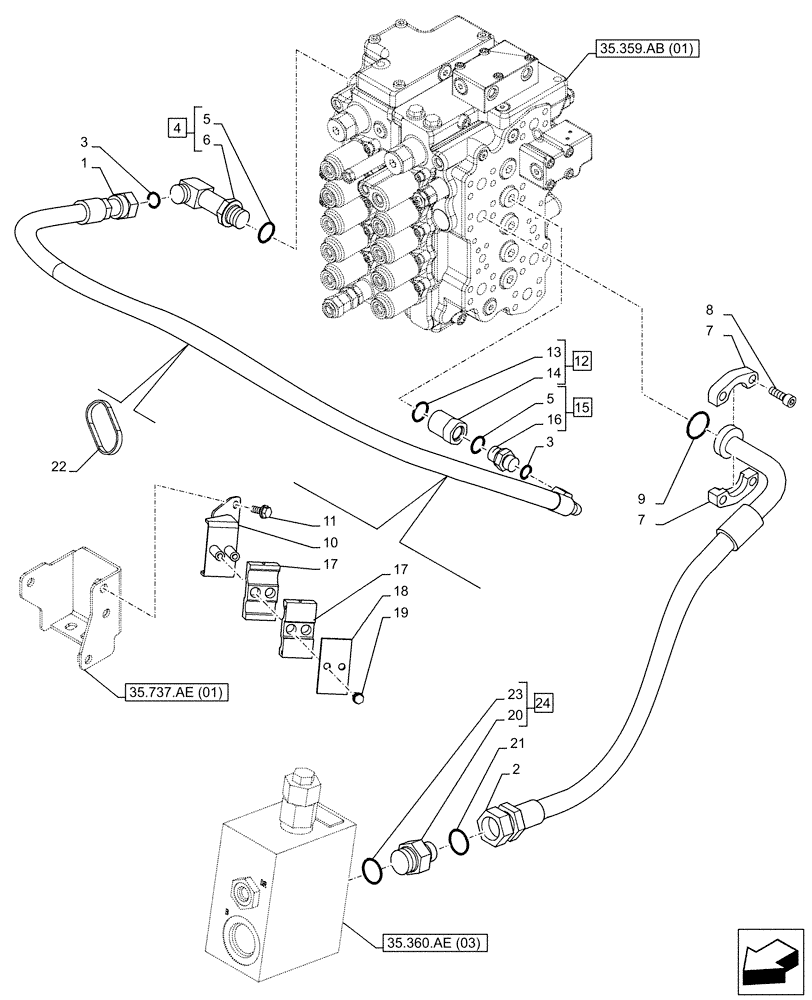

Запчасти Case CX160D LC (35.360.AB[12]) - VAR - 461868 - HAMMER CIRCUIT, LINES, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KNJ12880

HOSE ASSY.,12.70 mm ID x 930.00 mm

12mm ID x 930mm

1шт.

2

KLJ14860

HYDRAULIC HOSE

19mm ID x 650mm

1шт.

3

KHJ2587

O-RING

2шт.

4

KHJ14690

ELBOW

ASSY, Incl 5 (Qty 1), 6

1шт.

5

150539A1

O-RING

2шт.

6

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 4

1шт.

7

153458A1

FLANGE

2шт.

8

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

9

161097A1

O-RING

1шт.

10

KNJ18430

BRACKET

1шт.

11

166352A1

BOLT

M12 x 30mm

2шт.

12

KHJ14720

CHECK VALVE

ASSY, Incl 13, 14

1шт.

13

163286A1

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Incl in 12

1шт.

15

KHJ14710

ADAPTER

ASSY, Incl 5 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

17

KLJ14740

HOSE CLAMP

2шт.

18

KRH10210

PLATE

1шт.

19

166347A1

BOLT,Sems, M10 x 30mm

2шт.

20

NSS

NOT SOLD SEPARAT

Fitting, Incl in in 24

1шт.

21

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

22

150071A1

MOUNTING CLIP

380mm

2шт.

23

152211A1

O-RING

1шт.

24

KHJ1941

FITTING

ASSY, Incl 20 - 23

1шт.
