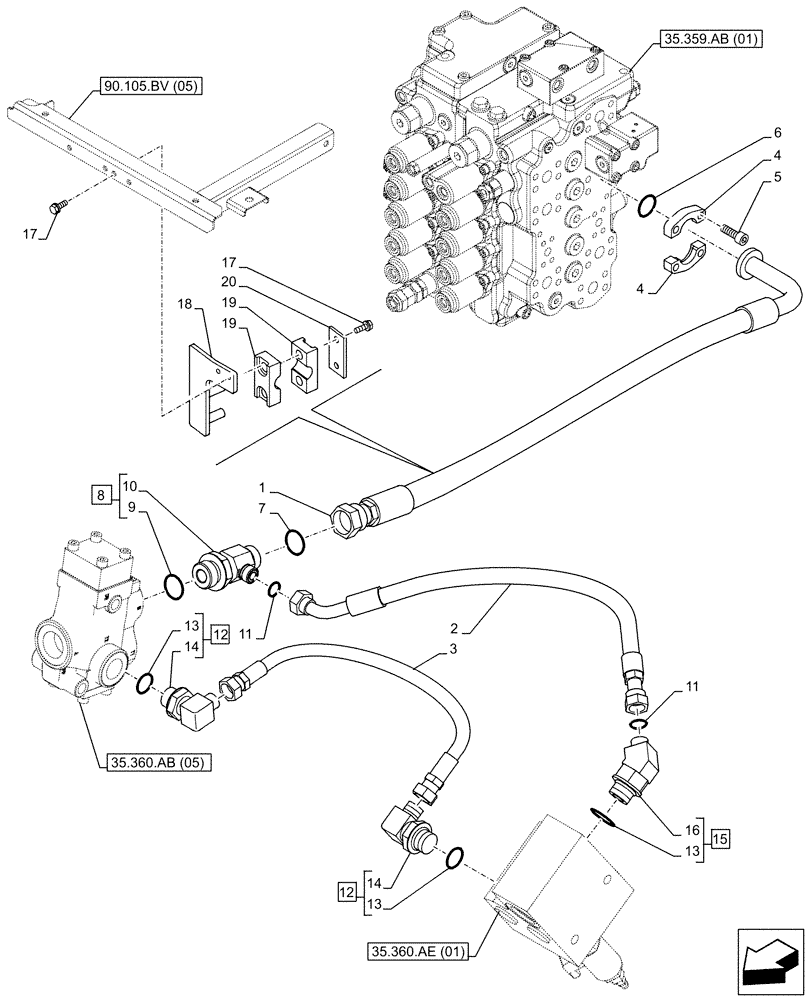

Запчасти Case CX160D LC (35.360.AB[07]) - VAR - 461869 - HAMMER CIRCUIT, LINES, HIGH FLOW, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KLJ14690

HYDRAULIC HOSE

19mm ID x 1400mm

1шт.

2

KLJ14010

HYDRAULIC HOSE

12mm ID x 660mm

1шт.

3

KRV1998

HYDRAULIC HOSE,12.70 mm ID x 850.00 mm

850mm

1шт.

4

153458A1

FLANGE

2шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

4шт.

6

161097A1

O-RING

1шт.

7

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

8

KHJ32202

TEE

ASSY, Incl 9, 10

1шт.

9

152211A1

O-RING

1шт.

10

NSS

NOT SOLD SEPARAT

Tee, Incl in 8

1шт.

11

KHJ2587

O-RING

2шт.

12

157936A1

ELBOW

ASSY, G3/4" x G1/2", Incl 13 (Qty 1), 14

2шт.

13

150542A1

O-RING

3шт.

14

NSS

NOT SOLD SEPARAT

90°Fitting, Incl in 12

2шт.

15

KHJ32301

ELBOW

ASSY, Incl 13 (Qty 1), 16

1шт.

16

NSS

NOT SOLD SEPARAT

45°Fitting, Incl in 15

1шт.

17

166347A1

BOLT,Sems, M10 x 30mm

4шт.

18

KLJ14700

BRACKET

1шт.

19

KLJ14710

HOSE CLAMP

2шт.

20

KLJ14050

PLATE

1шт.
