(35.360.AB[03]) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.360.AB[03]) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

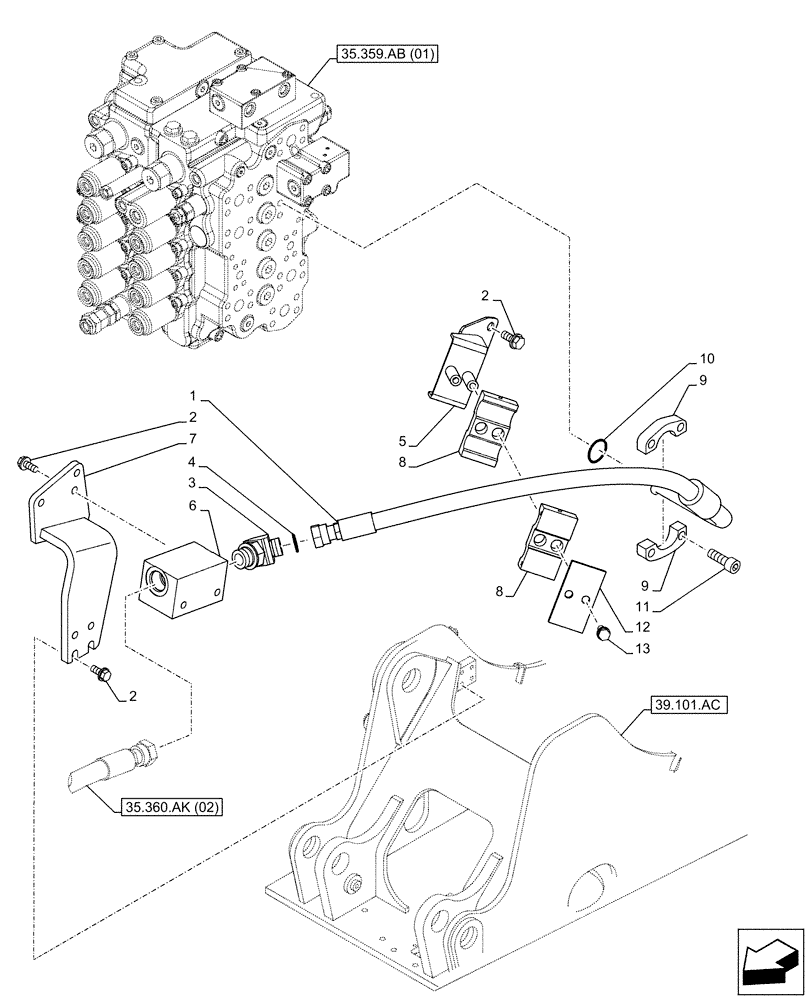

Схема запчастей Case CX160D LC - (35.360.AB[03]) - VAR - 461871 - HAMMER CIRCUIT, LINES, SHEARS, W/ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
2
9
10
1
35.359.ab (01)
8
12
8
6
2
7
9
5
3
35.360.ak (02)
39.101.ac
11
4
2
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLJ14870

HYDRAULIC HOSE

19mm ID x 1150mm

1шт.

2

166352A1

BOLT

M12 x 30mm

8шт.

3

KHJ16290

ELBOW

1шт.

4

KHJ1360

O-RING,0.07" Thk x 0.739" ID

1шт.

5

KNJ18430

BRACKET

1шт.

6

KRJ12170

MANIFOLD VALVE

1шт.

7

KRJ16050

SUPPORT

1шт.

8

KLJ14740

HOSE CLAMP

2шт.

9

153458A1

FLANGE

2шт.

10

161097A1

O-RING

1шт.

11

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M12 x 30mm

4шт.

12

KRH10210

PLATE

1шт.

13

166347A1

BOLT,Sems, M10 x 30mm

2шт.

Выбрано товаров: 13
