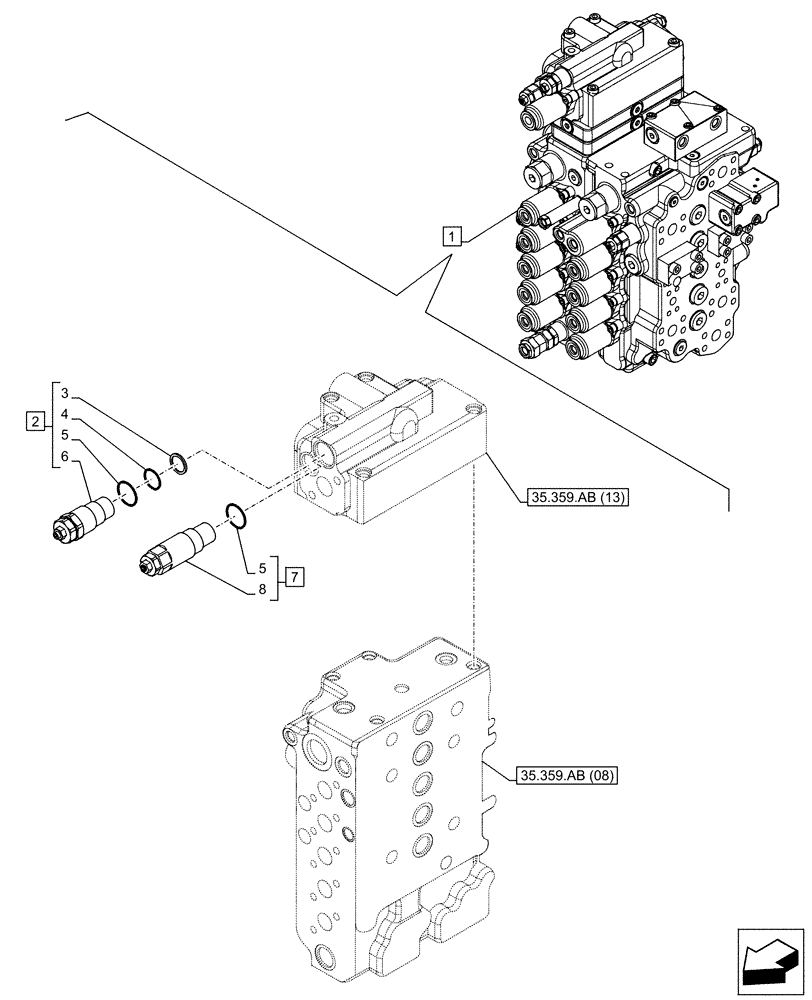

Запчасти Case CX160D LC (35.359.AY[05]) - VAR - 461863 - RELIEF VALVE, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KLJ14230

CONTROL VALVE

ASSY, Incl 2 - 8

1шт.

See also Figure 35.359.AB(07), 35.359.AB(08), 35.359.AB(09), 35.359.AB(10), 35.359.AB(11), 35.359.AB(12), 35.359.AB(13), 35.359.AY(04)

1шт.

2

LJ016760

VALVE PRESSURE RELIE

ASSY, Incl 3, 4, 5 (Qty 1), 6

1шт.

3

LE026610

RING

1шт.

4

LE026720

O-RING

1шт.

5

LE026690

O-RING

2шт.

6

NSS

NOT SOLD SEPARAT

Relief Valve, Incl in 2

1шт.

7

LJ016780

VALVE

ASSY, Incl 5 (Qty 1), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Relief Valve, Incl in 7

1шт.
