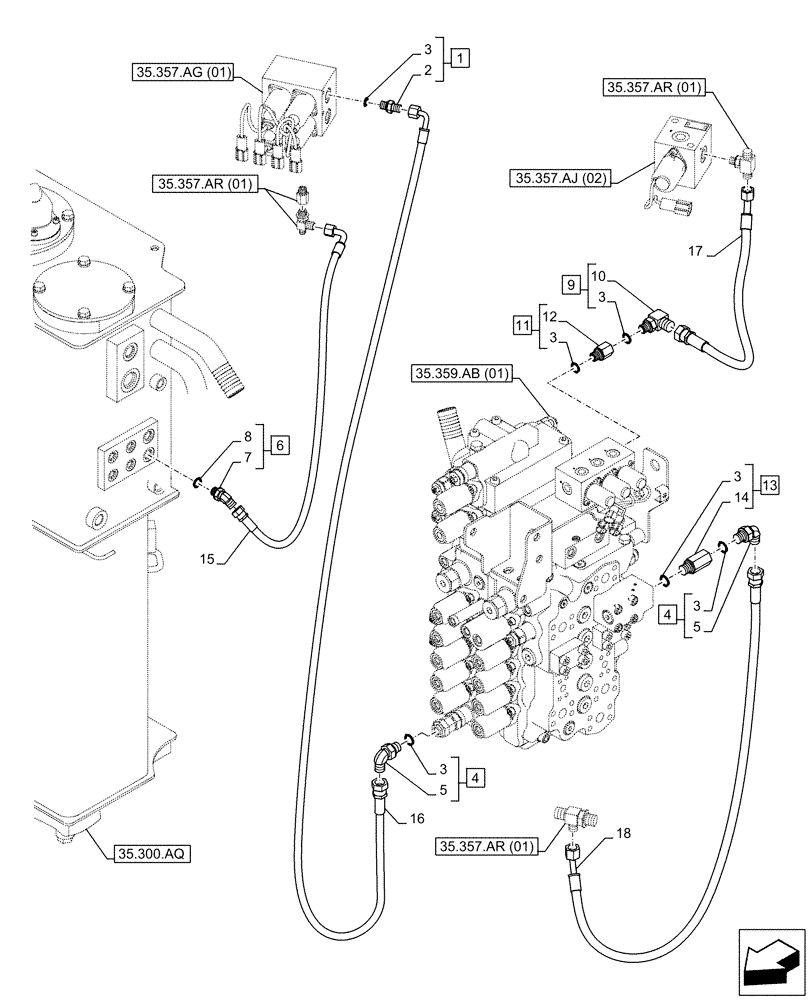

Запчасти Case CX160D LC (35.357.AR[02]) - PILOT VALVE, CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4" , Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

6шт.

4

KHJ28580

ELBOW

ASSY, G1/4" x G1/4" , Incl 5, 3 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

2шт.

6

KHJ28640

ELBOW

ASSY, G3/8" x G3/8" , Incl 7 - 8

1шт.

7

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 6

1шт.

8

150031A1

O-RING,10mm ID x 24mm OD

1шт.

9

KHJ0918

ADAPTER

ASSY, Incl 10, 3 (Qty 1)

1шт.

10

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 9

1шт.

11

KHJ13640

STUD

ASSY, Incl 12, 3 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

13

162525A1

STUD

ASSY, Incl 14, 3 (Qty 1)

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 13

1шт.

15

KHJ11020

HYDRAULIC HOSE

9mm ID x 2050mm

1шт.

16

KHJ25400

HOSE

6mm ID x 1800mm

1шт.

17

KHJ32070

HYDRAULIC HOSE

9mm ID x 2600mm

1шт.

18

KHJ2339

HYDRAULIC HOSE

6mm ID x 2100mm

1шт.
