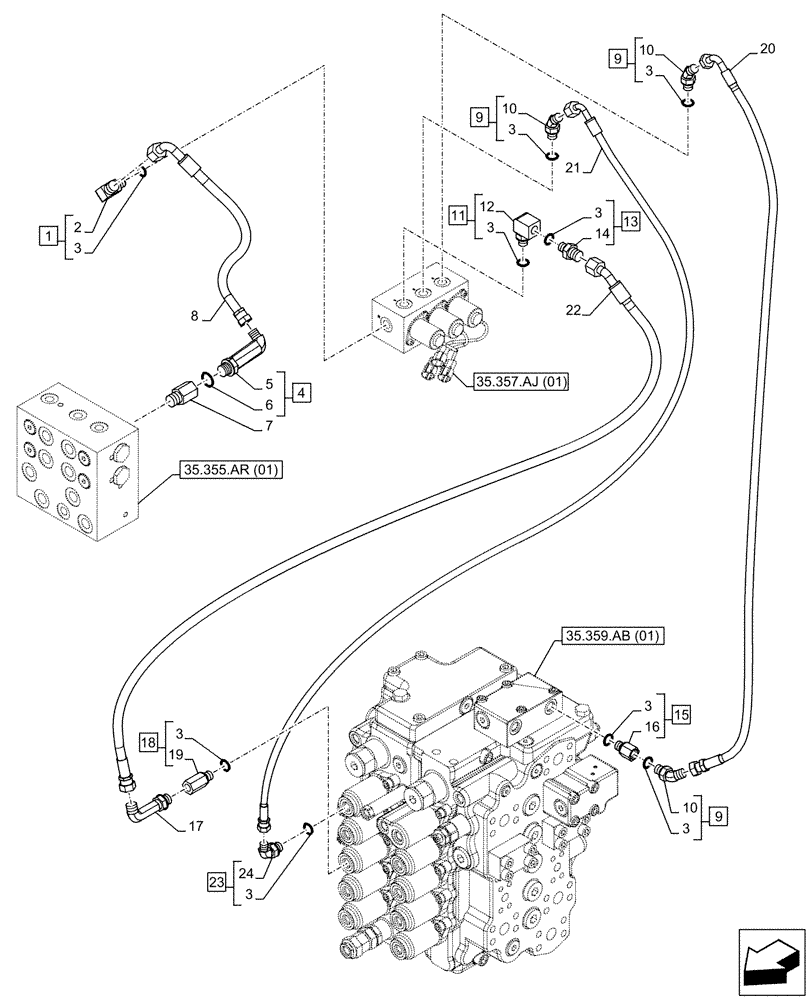

Запчасти Case CX160D LC (35.357.AO[02]) - STD + VAR - 461558 - MAIN, SOLENOID VALVE, PRESSURE PIPE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

KHJ0918

ADAPTER

ASSY, G1/4" x G1/4", Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

9шт.

4

KHJ28820

ELBOW

ASSY, G3/8" x G3/8", Incl 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 4

1шт.

6

150031A1

O-RING,10mm ID x 24mm OD

1шт.

7

KHV0373

STUD

1шт.

8

KHJ11580

HYDRAULIC HOSE,9.52 mm ID x 1350.00 mm

9mm ID x 1350mm

1шт.

9

KHJ28630

ELBOW

ASSY, Incl 10, 3 (Qty 1)

3шт.

10

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 1

3шт.

11

KHJ0719

ELBOW

ASSY, Incl 12, 3 (Qty 1)

1шт.

12

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 11

1шт.

13

152747A1

ADAPTER

ASSY, Incl 14, 3 (Qty 1)

1шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 13

1шт.

15

KHJ13640

STUD

ASSY, Incl 16, 3 (Qty 1)

1шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 15

1шт.

17

KHJ31600

ELBOW

1шт.

18

162525A1

STUD

ASSY, Incl 19, 3 (Qty 1)

1шт.

19

NSS

NOT SOLD SEPARAT

Fitting, Incl in 18

1шт.

20

168807A1

HOSE ASSY.

06mm ID x 260mm

1шт.

21

KHJ2091

HOSE

6mm ID x 1050mm

1шт.

22

KHJ22000

HYDRAULIC HOSE

9mm ID x 1200mm

1шт.

23

KHJ28580

ELBOW

ASSY, Incl 24, 3 (Qty 1)

1шт.

24

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 23

1шт.
