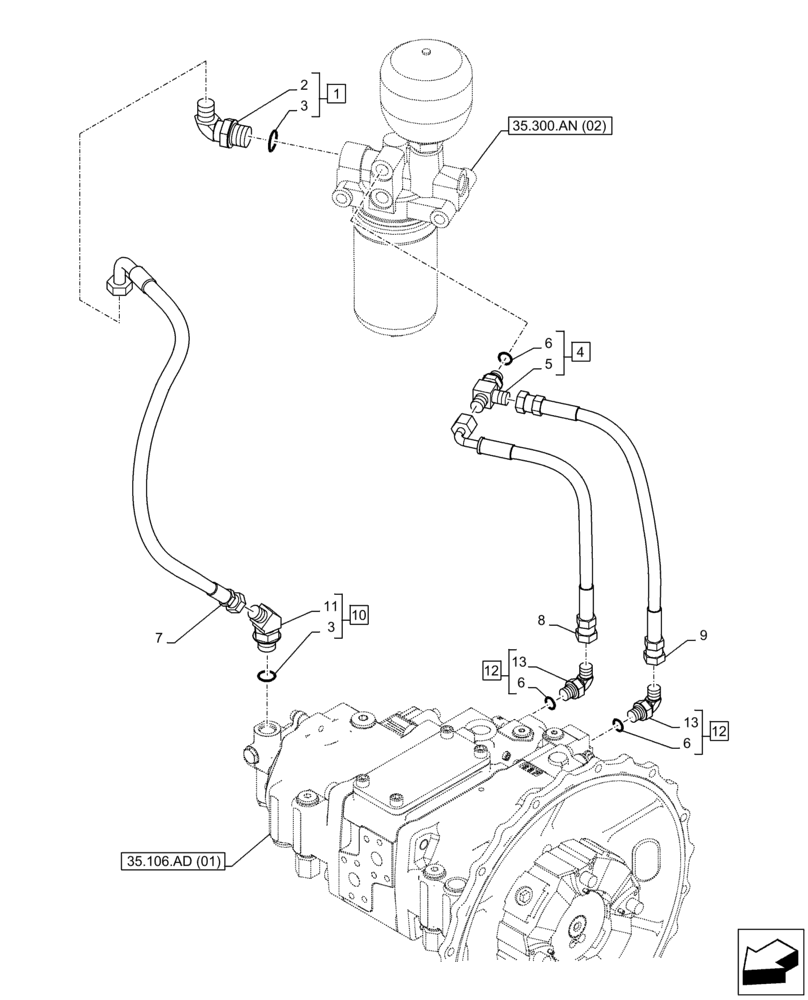

Запчасти Case CX160D LC (35.357.AD) - PILOT VALVE, OIL LINE (35) - HYDRAULIC SYSTEMS

1

KHJ29500

ELBOW

ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

3

150539A1

O-RING

2шт.

4

159497A1

TEE

ASSY, G1/4" x G1/4" x G1/4", Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

7

167873A1

HYDRAULIC HOSE,9.50 mm ID x 400.00 mm

9mm ID x 400mm

1шт.

8

KHJ34920

HYDRAULIC HOSE

6mm ID x 400mm

1шт.

9

KHJ34930

HYDRAULIC HOSE

6mm ID x 340mm

1шт.

10

KHJ1254

ELBOW

ASSY, G1/2" x G3/8", Incl 11, 3 (Qty 1)

1шт.

11

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 10

1шт.

12

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 13, 6 (Qty 1)

2шт.

13

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 12

2шт.
