(35.355.AK[04]) - VAR - 461869, 461871 - JOYSTICK, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.355.AK[04]) - VAR - 461869, 461871 - JOYSTICK, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

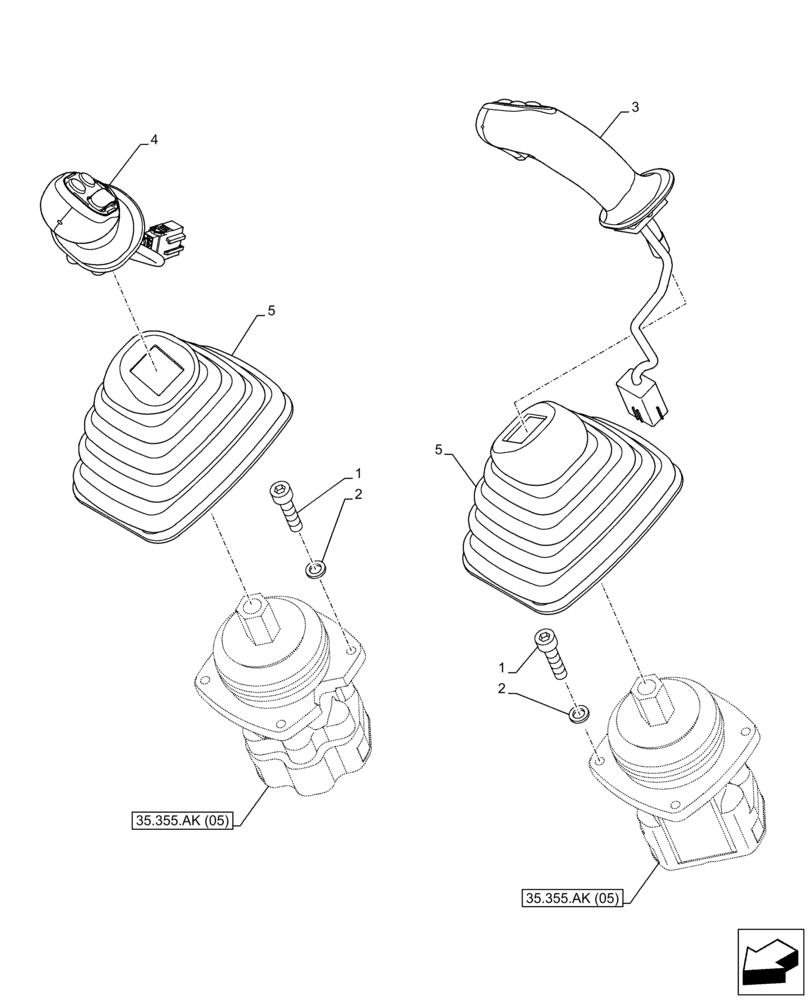

Схема запчастей Case CX160D LC - (35.355.AK[04]) - VAR - 461869, 461871 - JOYSTICK, HAMMER CIRCUIT, SHEARS, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
2
4
3
1
2
5
1
35.355.ak (05)
35.355.ak (05)
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

6шт.

2

892-11006

LOCK WASHER,M6

6шт.

3

KHJ29080

KNOB

Left

1шт.

Can be Equipped with VAR. 461863 See page 35.355.AK [02]

1шт.

4

KHJ28550

JOYSTICK

Switch Proportional Right

1шт.

5

KHN16760

BELLOWS

2шт.

Выбрано товаров: 6
