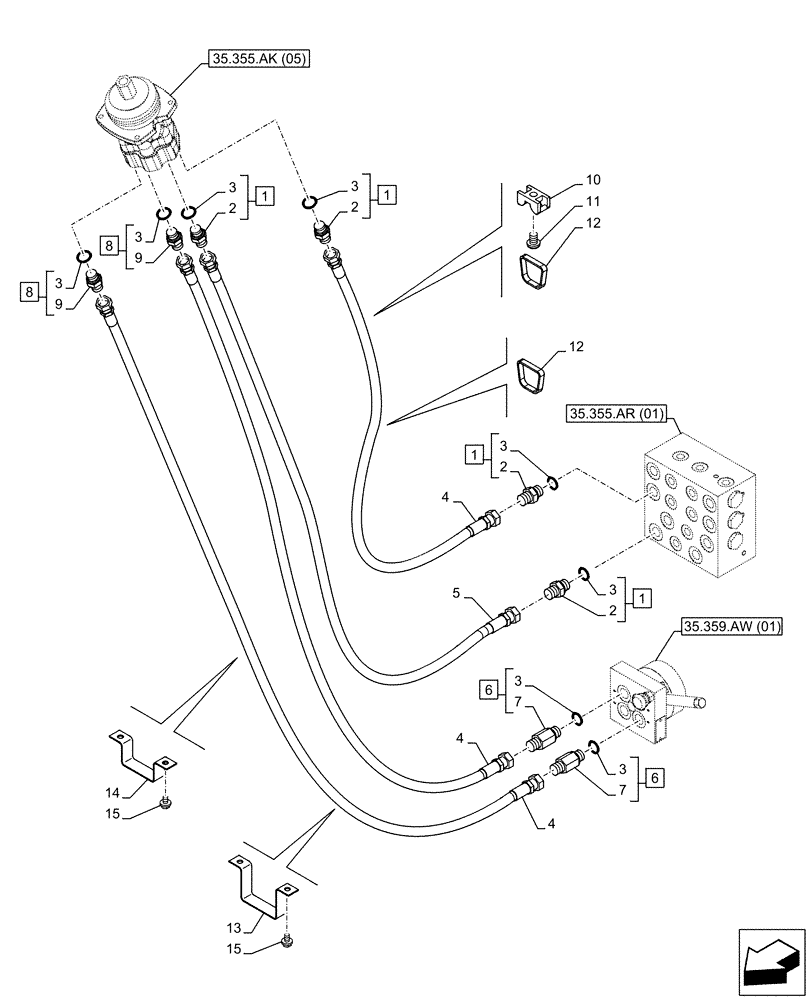

Запчасти Case CX160D LC (35.355.AC[06]) - VAR - 461558 - JOYSTICK, RH, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

1

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 2, 3 (Qty 1)

4шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

4шт.

3

150031A1

O-RING,10mm ID x 24mm OD

8шт.

4

159211A1

HYDRAULIC HOSE

9mm ID x 2000mm

3шт.

5

168025A1

HYDRAULIC HOSE,9.50 mm ID x 1950.00 mm

9mm ID x 1950mm

1шт.

6

159226A1

ADAPTER

ASSY, Incl 7, 3 (QtY 1)

2шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.

8

KHJ1402

ADAPTER

ASSY, Incl 9, 3 (QtY 1)

2шт.

9

NSS

NOT SOLD SEPARAT

Fitting, Incl in 8

2шт.

10

150860A1

COLLAR

1шт.

11

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.

12

150498A1

MOUNTING CLIP

300mm

2шт.

13

KHJ24020

CLAMP

1шт.

14

KHJ13770

COLLAR

1шт.

15

166345A1

BOLT

M8 x 16mm

4шт.
