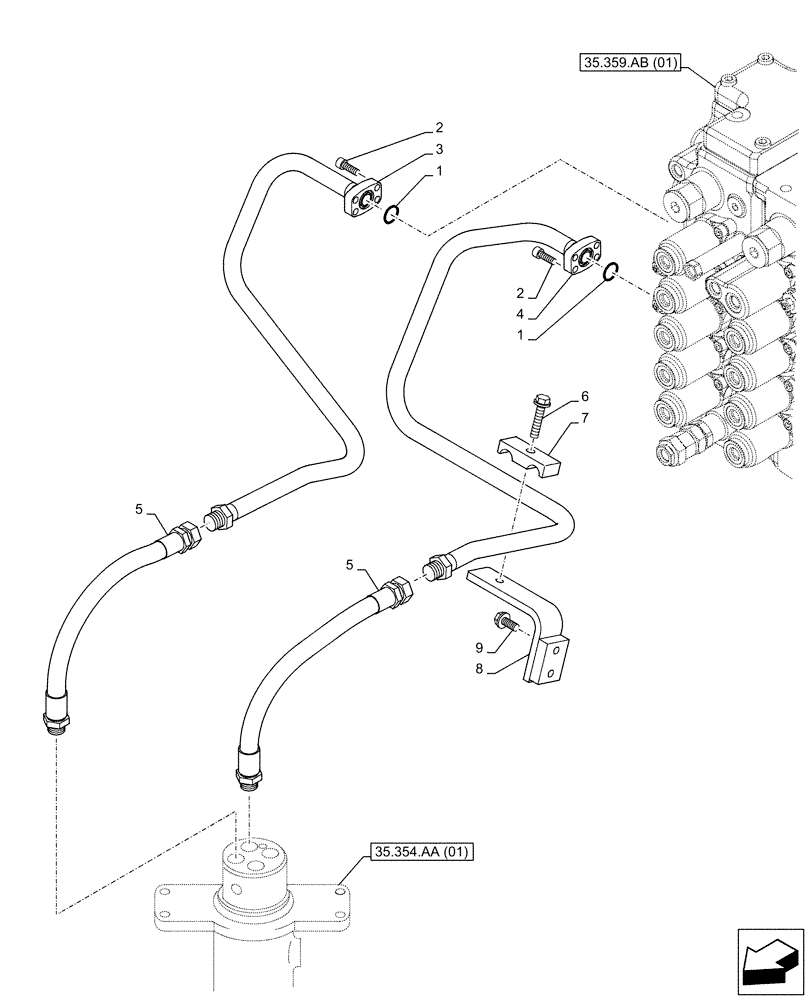

Запчасти Case CX160D LC (35.354.AF[02]) - HYDRAULIC SWIVEL, LINE (35) - HYDRAULIC SYSTEMS

1

161097A1

O-RING

2шт.

2

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

3

KLJ11110

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

4

KLJ11100

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

5

KLJ10680

HOSE ASSY.,15.90 mm ID x 470.00 mm

15mm ID x 470mm

2шт.

6

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

1шт.

7

152085A1

COLLAR

1шт.

8

KLJ11120

BRACKET

1шт.

9

166352A1

BOLT

M12 x 30mm

2шт.
