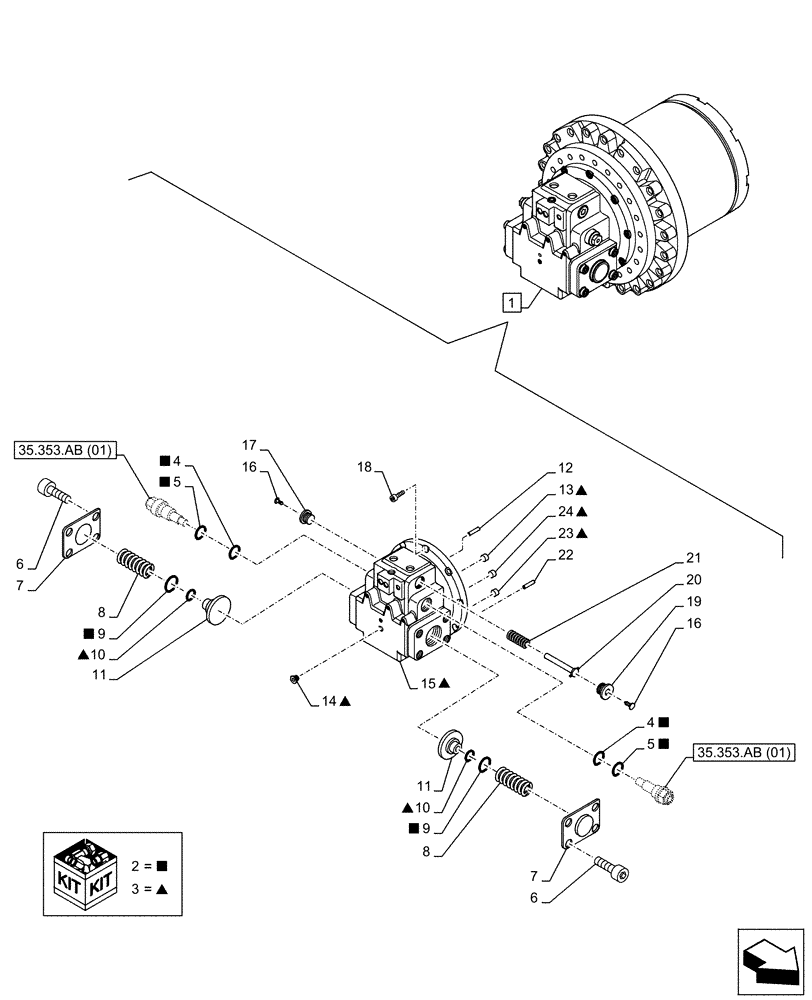

Запчасти Case CX160D LC (35.353.AD[02]) - TRAVEL MOTOR & REDUCTION GEAR, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KLA11000

HYDRAULIC MOTOR

ASSY, Incl 2 - 24

1шт.

See also Figure 35.353.AB(01), 35.353.AB(02), 35.353.AD(01), 35.353.AD(03), 35.353.AG

1шт.

2

LZ011370

KIT

1шт.

See also Figure 35.353.AB(02), 35.353.AD(03)

1шт.

3

LZ013630

KIT

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

5

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

6

LA017870

BOLT

8шт.

7

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

2шт.

8

LG006200

SPRING

2шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

2шт.

11

156110A1

SPRING SEAT

2шт.

12

LA010950

DOWEL

1шт.

13

LJ015320

ORIFICE

2шт.

14

161773A1

PLUG

4шт.

15

NSS

NOT SOLD SEPARAT

Case, Incl in 1

1шт.

16

LR019520

BLOCK

2шт.

17

LK00329

PLUG

1шт.

18

LA017810

BOLT

10шт.

19

LK00306

PLUG

1шт.

20

LS00127

GUIDE

1шт.

21

LG00343

COMPRESSION SPRING

1шт.

22

160097A1

COTTER PIN

4шт.

23

164485A1

ORIFICE

1шт.

24

156872A1

ORIFICE

3шт.
