(35.353.AD[01]) - TRAVEL MOTOR & REDUCTION GEAR, HOUSING

Запчасти Case CX160D LC (35.353.AD[01]) - TRAVEL MOTOR & REDUCTION GEAR, HOUSING (35) - HYDRAULIC SYSTEMS

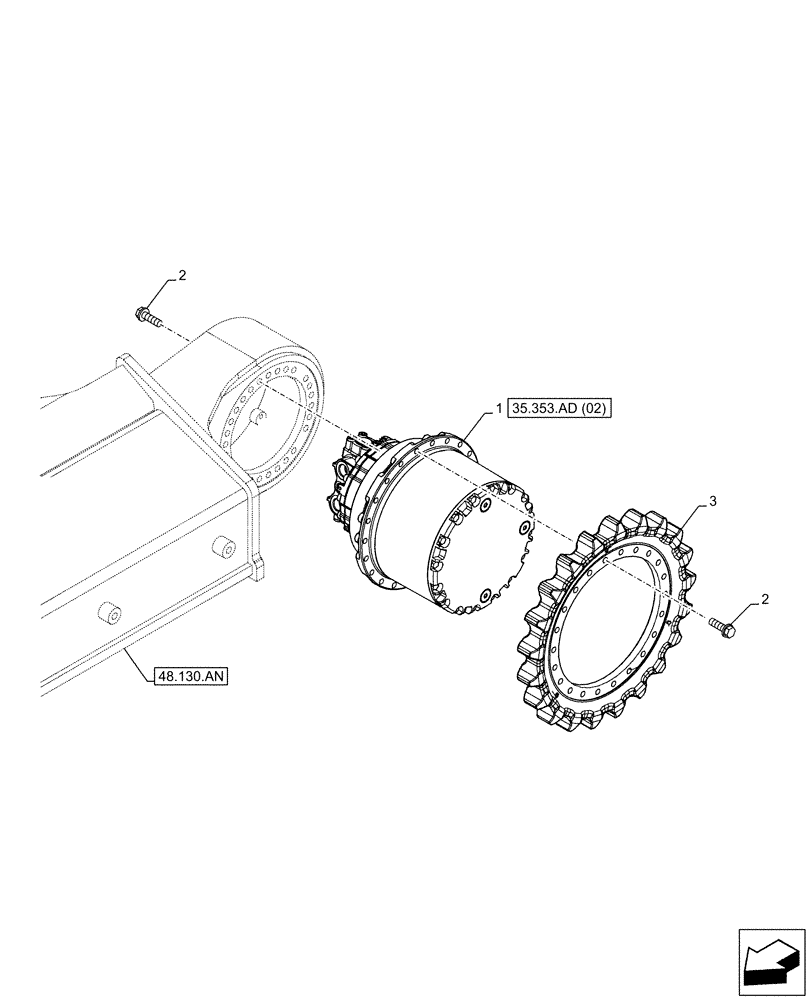

Схема запчастей Case CX160D LC - (35.353.AD[01]) - TRAVEL MOTOR & REDUCTION GEAR, HOUSING (35) - HYDRAULIC SYSTEMS
2
35.353.ad (02)
1
2
48.130.an
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KLA11000

HYDRAULIC MOTOR

ASSY

2шт.

See also Figure 35.353.AB(01), 35.353.AB(02), 35.353.AD(02), 35.353.AD(03), 35.353.AG

1шт.

2

165930A1

BOLT,Sems, M16 x 55mm

100шт.

3

KRA12900

SPROCKET

2шт.

Выбрано товаров: 4
