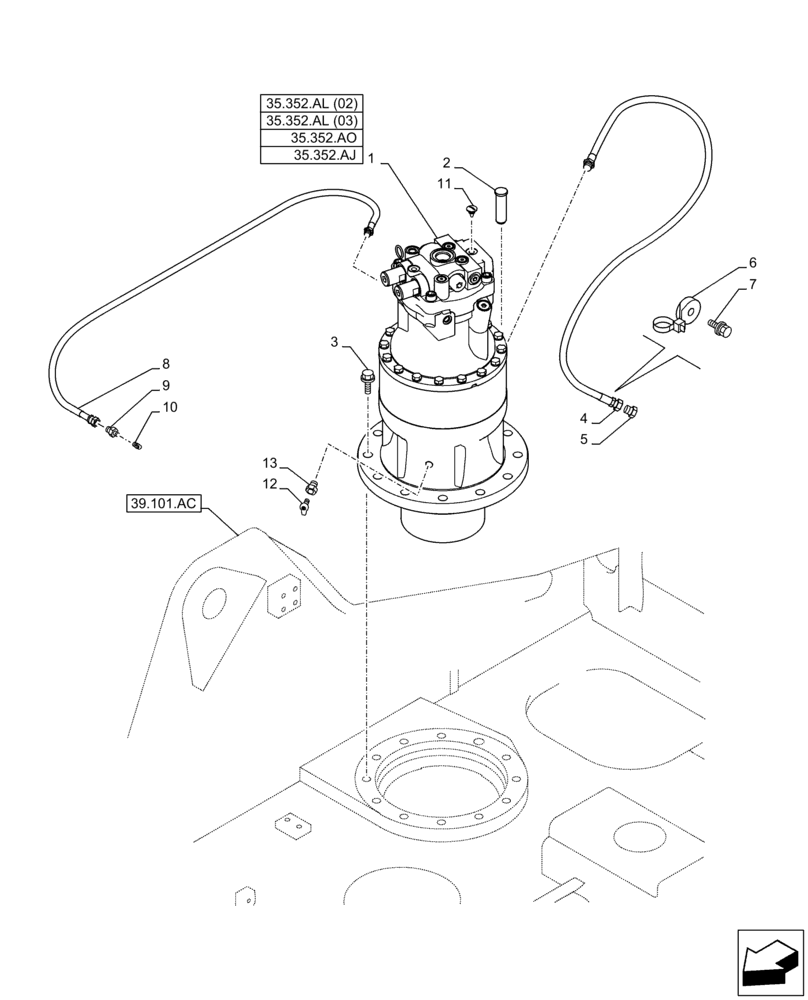

Запчасти Case CX160D LC (35.352.AL[01]) - SWING REDUCTION UNIT (35) - HYDRAULIC SYSTEMS

1

KLC10260

HYDRAULIC MOTOR

ASSY Motor Swing W/ANTI-RVS V

1шт.

2

KLC10081

PIN

1шт.

3

166354A1

BOLT,Sems, M20 x 75mm

11шт.

4

KRJ16100

HYDRAULIC HOSE,12.70 mm ID x 470.00 mm

12mm ID x 470mm

1шт.

5

KHP0578

PLUG

1шт.

6

KHR2584

CLAMP

1шт.

7

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

8

KHJ16120

HOSE,6.30 mm ID x 1250.00 mm

1шт.

9

KRJ4050

ADAPTER

1шт.

10

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

11

KHV12270

SCREW,M12 x 1

2шт.

12

KRC10710

VALVE

1шт.

13

KRC10720

FITTING

1шт.
