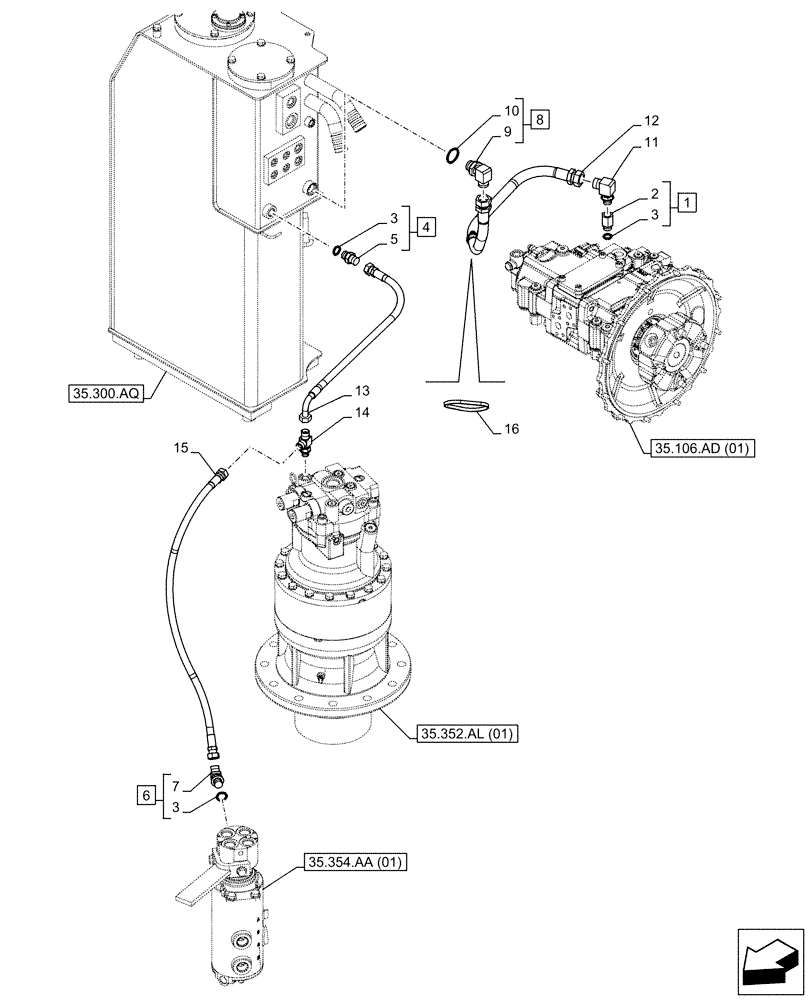

Запчасти Case CX160D LC (35.352.AI[02]) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

1

KHJ1713

STUD

ASSY, G1/2" x G1/2", Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

150539A1

O-RING

3шт.

4

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2", Incl 5, 3 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

6

157585A1

ELBOW

ASSY, G1/2" x G1/2", Incl 7, 3 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4" x G3/4", Incl 9 - 10

1шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

1шт.

10

150542A1

O-RING

1шт.

11

168609A1

ELBOW

G1/2" x G3/4"

1шт.

12

KNJ22740

HYDRAULIC HOSE

15mm ID x 760mm

1шт.

13

KBJ3033

HYDRAULIC HOSE

12mm ID x 650mm

1шт.

14

KHJ14010

TEE

G3/8" x G1/2" x G1/2"

1шт.

15

KNJ2826

HYDRAULIC HOSE

880mm

1шт.

16

150496A1

MOUNTING CLIP

250mm

1шт.
