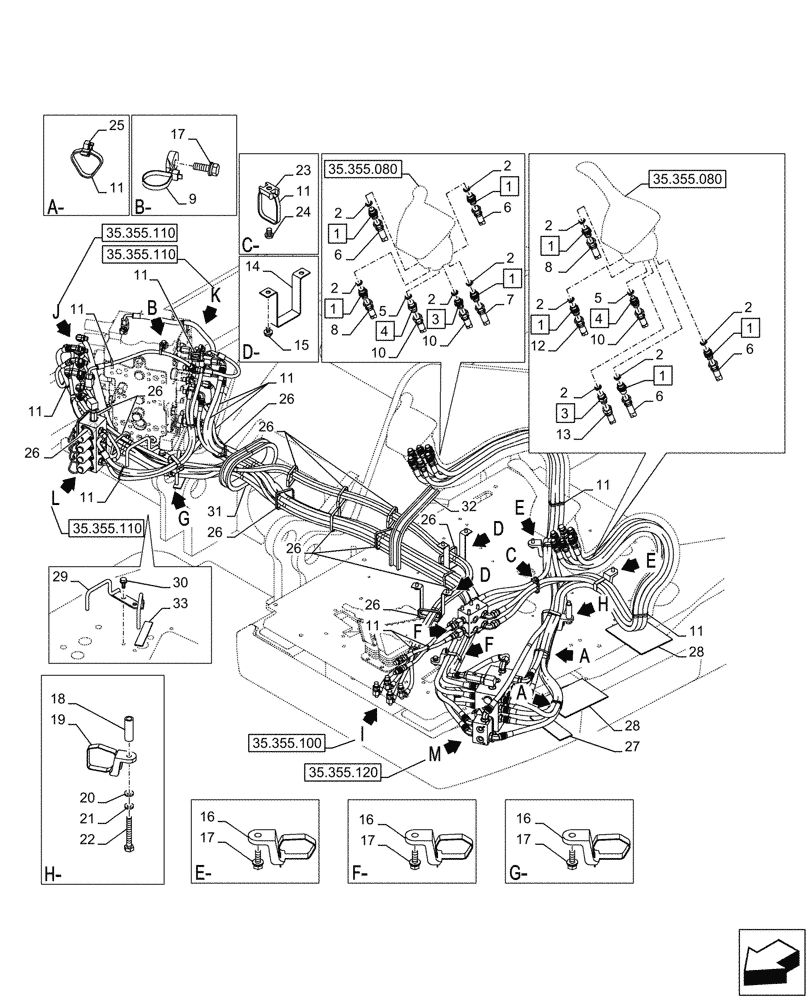

Запчасти Case CX145D SR LC W/BLADE (35.355.090) - JOYSTICK, HYDRAULIC LINE, CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

KHJ1402

ADAPTER

ASSY, G3/8" x G3/8", Incl 2 (Qty 1)

8шт.

2

150031A1

O-RING,10mm ID x 24mm OD

10шт.

3

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 2 (Qty 1)

2шт.

4

161842A1

ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB

ASSY, G1/4" x G3/8", Incl 5

2шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

KHJ38540

HYDRAULIC HOSE

9mm ID x 2050mm, from Remote Control Valve to Cushion Valve

4шт.

7

KHJ38560

HYDRAULIC HOSE

9mm ID x 2150mm, from Remote Control Valve to Manifold

1шт.

8

KHJ38570

HYDRAULIC HOSE

9mm ID x 1800mm, from Remote Control Valve to Cushion Valve

2шт.

9

KHR2584

CLAMP

1шт.

10

KHJ2272

HOSE ASSY.

9mm ID x 1550mm, from Remote Control Valve to Manifold

2шт.

11

150496A1

MOUNTING CLIP

10шт.

12

KHJ38580

HYDRAULIC HOSE

9mm ID x 1750mm, from Remote Control Valve to Cushion Valve

1шт.

13

KHJ2100

FLEXIBLE HOSE

9mm ID x 1500mm, from Remote Control Valve to Manifold

1шт.

14

KHJ10250

CLAMP

2шт.

15

166345A1

BOLT

4шт.

16

KHR2581

CLAMP

5шт.

17

KHJ1215

BOLT,Spcl

6шт.

18

KRJ40080

SPACER

1шт.

19

KHR2582

CLAMP

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

21

892-11010

LOCK WASHER,M10

1шт.

22

102R010Y075R

BOLT

1шт.

23

150860A1

COLLAR

1шт.

24

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

1шт.

25

KHR10220

MOUNTING CLIP

1шт.

26

150071A1

MOUNTING CLIP

9шт.

27

KHN46720

PLATE

1шт.

28

KHJ38800

PLATE

2шт.

29

KMJ21090

BRACKET

1шт.

30

166052A1

BOLT

2шт.

31

KRJ17680

SEAL PROTECTION

1шт.

32

KAJ5121

FLEXIBLE SHEATH

1шт.

33

KHN46670

PLATE

1шт.
