(35.354.020) - HYDRAULIC SWIVEL, LINE, BLADE

Запчасти Case CX145D SR LC W/BLADE (35.354.020) - HYDRAULIC SWIVEL, LINE, BLADE (35) - HYDRAULIC SYSTEMS

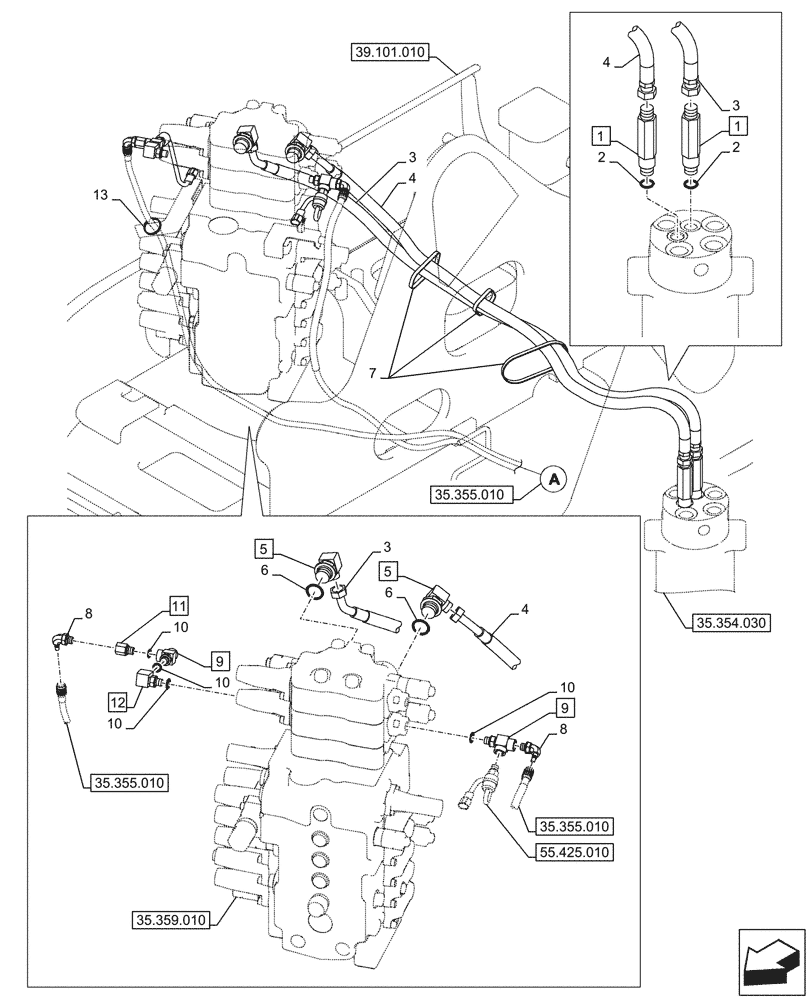

Схема запчастей Case CX145D SR LC W/BLADE - (35.354.020) - HYDRAULIC SWIVEL, LINE, BLADE (35) - HYDRAULIC SYSTEMS
39.101.010
5
10
6
10
3
3
1
6
2
4
13
4
1
9
10
8
11
10
5
2
7
9
12
4
8
3
35.354.030
35.355.010
35.355.010
35.355.010
55.425.010
35.359.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2232

ADAPTER

ASSY, G1/2" x G1/2", Incl 2

2шт.

2

150539A1

O-RING

2шт.

3

KRJ30530

HYDRAULIC HOSE

12mm ID x 1390mm, From Main Control Valve to Hydraulic Swivel

1шт.

4

KMJ22700

HYDRAULIC HOSE

12mm ID x 1280mm, From Main Control Valve to Hydraulic Swivel

1шт.

5

157936A1

ELBOW

ASSY, G3/4" x G1/2", Incl 6

2шт.

6

150542A1

O-RING

2шт.

7

150071A1

MOUNTING CLIP

380mm

3шт.

8

KHJ38230

ELBOW

G1/4" x 1/4"

2шт.

9

KHJ12530

TEE

ASSY, 3-G1/4", Incl 10 (Qty 1)

2шт.

10

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

11

KHJ13640

STUD

ASSY, G1/4", Incl 10 (Qty 1)

1шт.

12

KHJ0719

ELBOW

ASSY, G1/4" x G1/4", Incl 10 (Qty 1)

1шт.

13

150496A1

MOUNTING CLIP

250mm

1шт.
