(35.353.030) - TRAVEL MOTOR & REDUCTION GEAR, LINE

Запчасти Case CX145D SR LC W/BLADE (35.353.030) - TRAVEL MOTOR & REDUCTION GEAR, LINE (35) - HYDRAULIC SYSTEMS

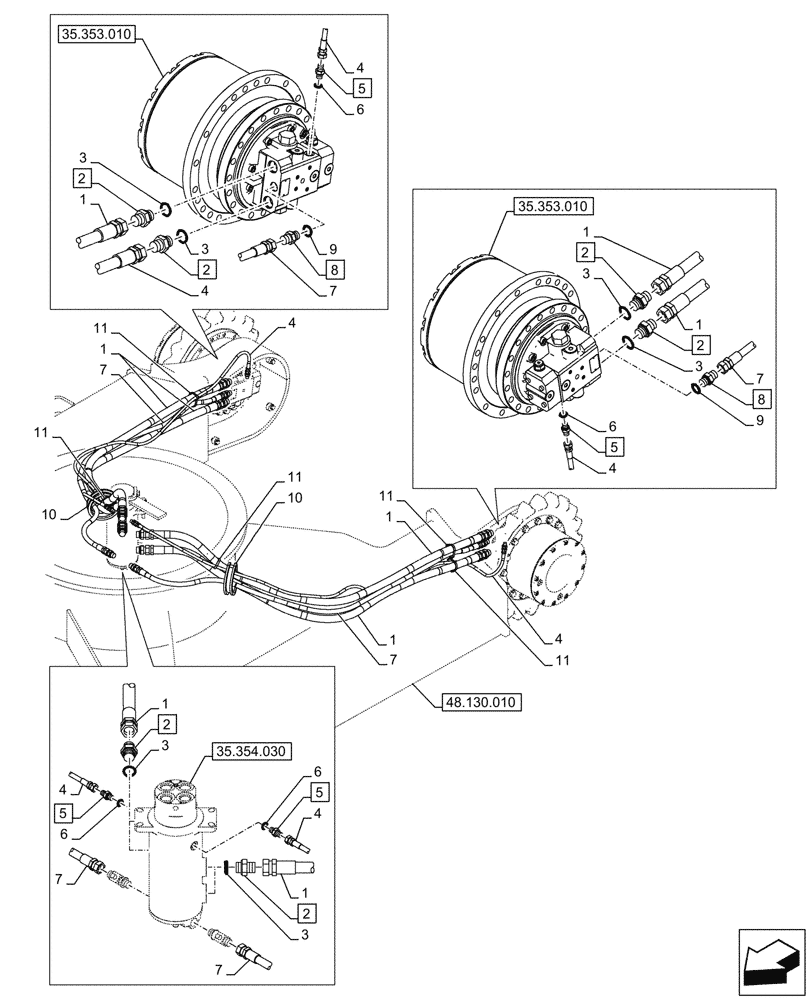

Схема запчастей Case CX145D SR LC W/BLADE - (35.353.030) - TRAVEL MOTOR & REDUCTION GEAR, LINE (35) - HYDRAULIC SYSTEMS
48.130.010
1
3
11
5
2
2
4
5
7
11
4
11
3
6
8
5
7
1
3
4
7
4
7
1
1
7
4
7
9
6
5
2
1
4
2
6
1
11
3
4
10
6
2
1
3
8
1
10
3
9
11
2
35.353.010
35.353.010
35.354.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

160696A1

HYDRAULIC HOSE,19.00 mm ID x 1680.00 mm

4шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, G3/4" x G3/4" Incl 3

8шт.

3

150542A1

O-RING

8шт.

4

152709A1

HOSE,6.4mm ID x 2100mm L

04mm ID x 2100mm

2шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4" Incl 6

4шт.

6

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

7

150963A1

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

2шт.

8

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, G1/2" x G1/2" Incl 9

2шт.

9

150539A1

O-RING

2шт.

10

150876A1

RUBBER BLOCK

19mm x 380mm

2шт.

11

150071A1

MOUNTING CLIP

380mm

5шт.
