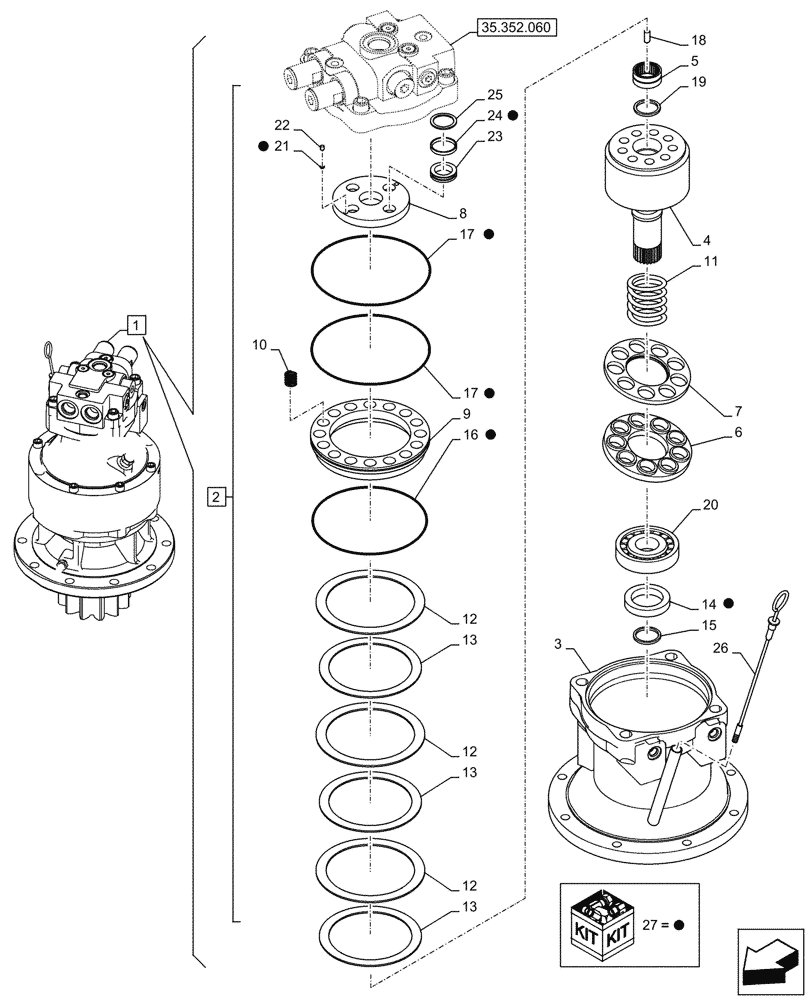

Запчасти Case CX145D SR LC W/BLADE (35.352.070) - SWING REDUCTION UNIT, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

KMC10130

ASSY, Incl 2 - 27

HYDRAULIC MOTOR

1шт.

See also Figure 35.352.060, 35.352.080

1шт.

2

LJ024450

ASSY, Incl 3 - 13

PISTON

1шт.

See also Figure 35.352.060

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

4

LJ024460

BLOCK

1шт.

5

LB018330

NEEDLE BEARING

1шт.

6

LR025410

SWASH PLATE

1шт.

7

LR025420

PLATE

1шт.

8

LR025430

PLATE

1шт.

9

LJ024470

PISTON

1шт.

10

LG009010

SPRING

16шт.

11

LG009020

SPRING

1шт.

12

LR025440

PLATE

2шт.

13

LR025450

PLATE

2шт.

14

LE032520

OIL SEAL

1шт.

15

LE032530

RING

1шт.

16

LE032540

O-RING

1шт.

17

LE032550

O-RING

2шт.

18

LA020170

PIN

2шт.

19

LE032570

RING

1шт.

20

LB018340

ROLLER

1шт.

21

LE032580

RING

2шт.

22

LJ024500

PISTON

2шт.

23

LB018350

BUSHING

4шт.

24

LE032590

RING

4шт.

25

LG009040

SPRING

4шт.

26

LM001500

GAUGE

1шт.

27

LZ015280

SEAL KIT

1шт.

See also Figure 35.352.060, 35.352.080

1шт.
