(35.352.030) - MOTO-REDUCTION GEAR, LINES

Запчасти Case CX145D SR LC W/BLADE (35.352.030) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

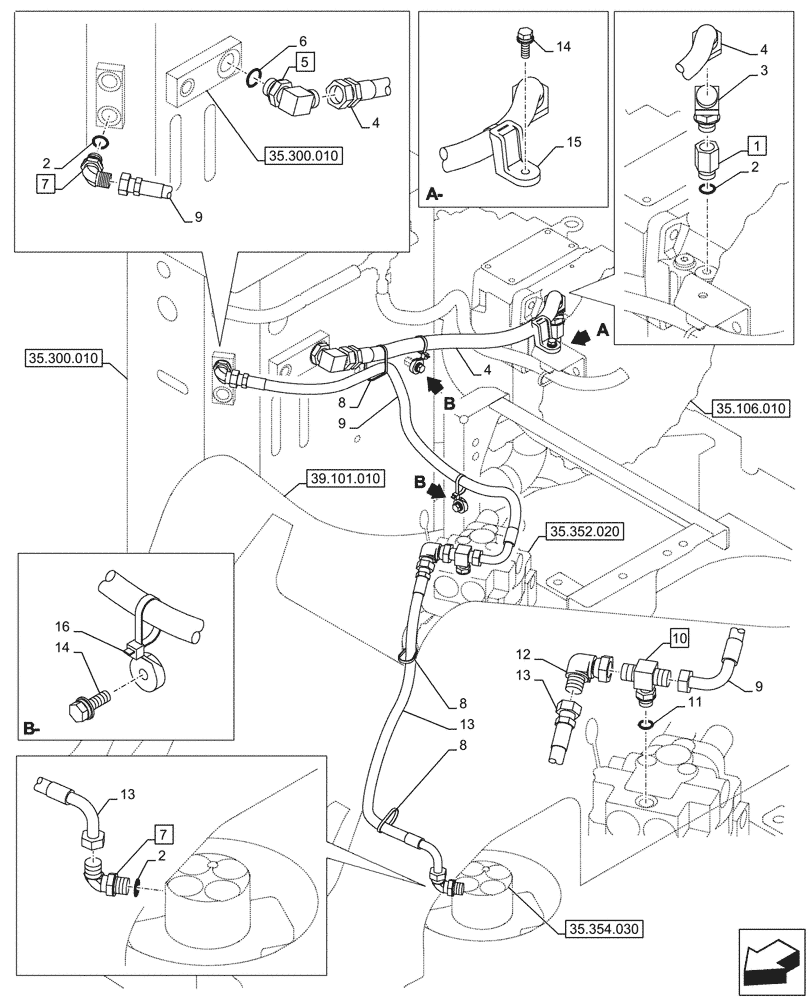

Схема запчастей Case CX145D SR LC W/BLADE - (35.352.030) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
35.352.020
5
11
13
2
8
12
9
14
15
9
2
8
4
10
1
14
7
13
6
8
9
2
3
13
4
7
16
4
35.354.030
35.106.010
35.300.010
35.300.010
39.101.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ1713

STUD

ASSY, G1/2" x G1/2" x 44mm, Incl 2 (Qty 1)

1шт.

2

150539A1

O-RING

3шт.

3

163005A1

ELBOW

G1/2" x G3/4"

1шт.

4

KMJ22240

HYDRAULIC HOSE

19mm ID x 730mm, From hydraulic Pump to Oil Tank

1шт.

5

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4" x G3/4", Incl 6

1шт.

6

150542A1

O-RING

1шт.

7

KHJ28600

ELBOW

ASSY, G1/2" x G1/2", Incl 2 (Qty 1)

2шт.

8

150496A1

MOUNTING CLIP

250mm

3шт.

9

KMJ22220

HYDRAULIC HOSE

12mm ID x 1050mm, From Oil Tank to Moto Reduction Gear

1шт.

10

KHJ1157

TEE

ASSY, Incl 11

1шт.

11

150031A1

O-RING,10mm ID x 24mm OD

1шт.

12

FAJ0074

ELBOW

1шт.

13

KMJ22230

HYDRAULIC HOSE

12mm ID x 750mm, From Motor Reduction Gear to Hydraulic Swivel

1шт.

14

KHJ1215

BOLT,Spcl

M8 x 25mm

3шт.

15

KHR2581

CLAMP

M8

1шт.

16

KHR2584

CLAMP

2шт.
