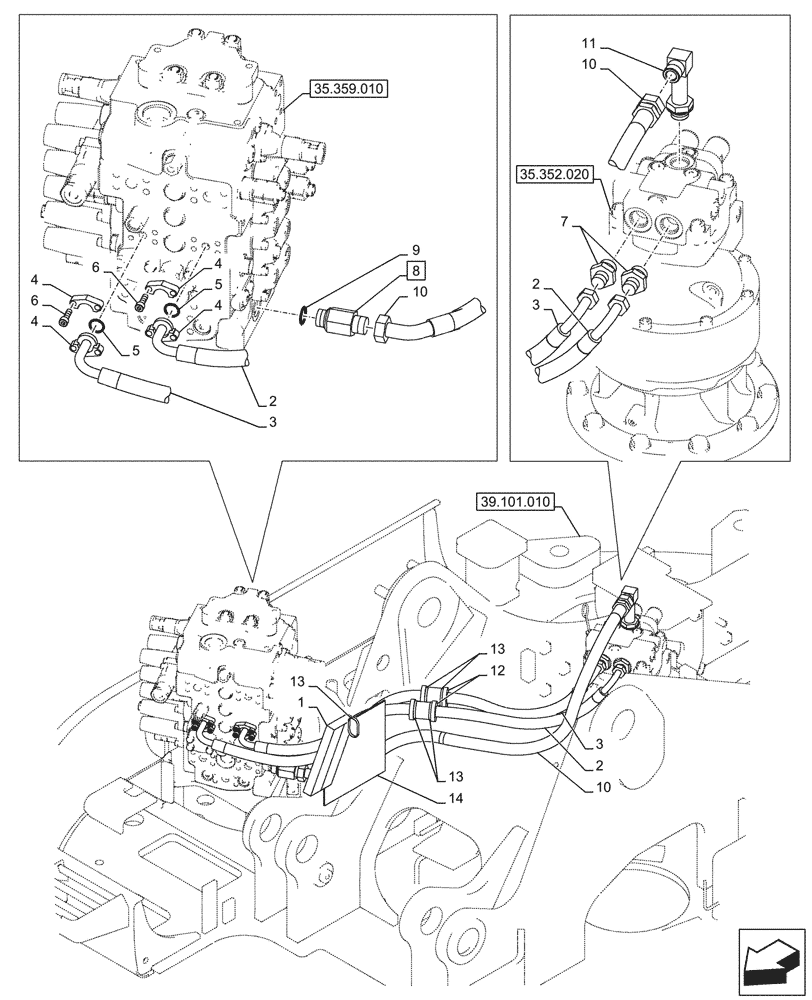

Запчасти Case CX145D SR LC W/BLADE (35.352.010) - MOTO-REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
35.352.020
10
10
7
1
9
4
13
10
13
6
5
6
4
2
2
13
12
3
4
4
8
14
5
3
11
2
3
35.359.010
39.101.010
№
Артикул
Название
Примечание
Количество
1
KMJ21680
SEAL
1шт.
2
KMJ22260
HYDRAULIC HOSE
12mm x ID 1000mm, From Main Control Valve to Swing Reduction Unit
1шт.
3
KMJ22270
HYDRAULIC HOSE
12mm x ID 1100mm, From Main Control Valve to Swing Reduction Unit
1шт.
4
161080A1
FLANGE
4шт.
5
161096A1
O-RING
2шт.
6
862-8025
HEX SOC SCREW,M8 x 25mm, Cl 12.9
M8 x 25mm
8шт.
7
168988A1
ADAPTER
G1/2" x G3/4"
2шт.
8
KAJ2917
ADAPTER
ASSY, Incl 9
1шт.
9
150542A1
O-RING
1шт.
10
KMJ22610
HYDRAULIC HOSE
19mm x ID 1100mm, From Main Control Valve to Swing Reduction Unit
1шт.
11
KHJ22650
ELBOW
G3/4"
1шт.
12
KHJ2021
HOSE CLAMP
2шт.
13
150496A1
MOUNTING CLIP
250mm
5шт.
14
KMJ21670
PLATE
1шт.
Выбрано товаров: 14
