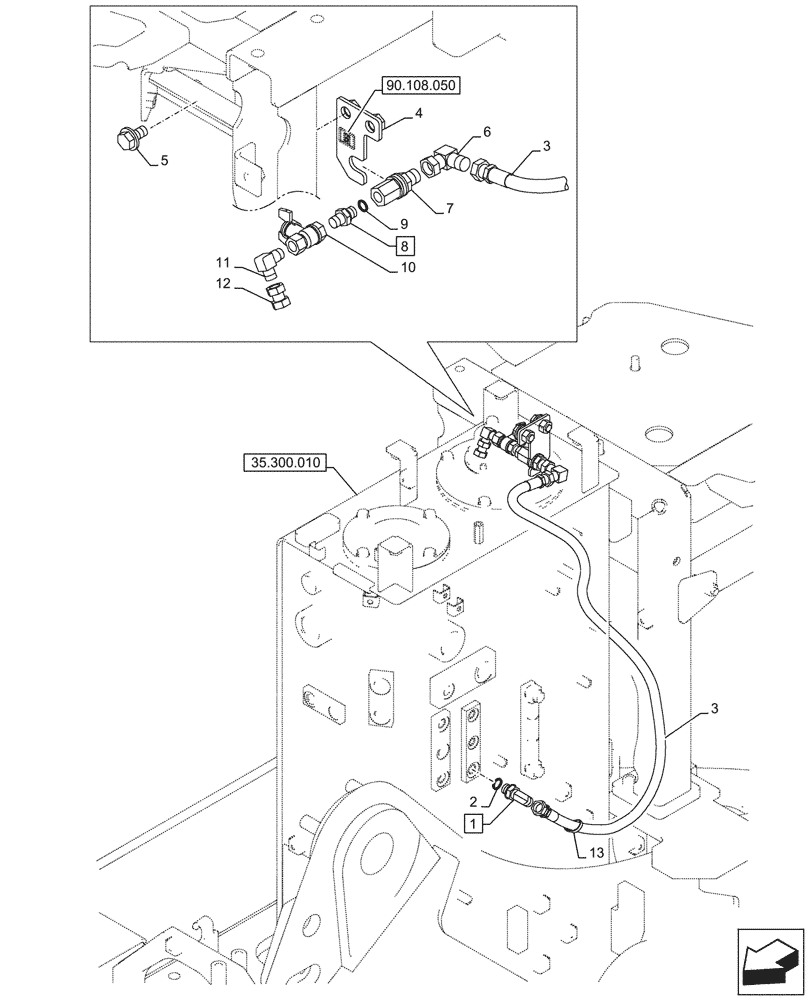

Запчасти Case CX145D SR LC W/BLADE (35.300.030) - VAR - 488034 - HYDRAULIC OIL RESERVOIR, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

KHJ28590

ELBOW

ASSY, G3/8" x G3/8", Incl 2

1шт.

2

150031A1

O-RING,10mm ID x 24mm OD

1шт.

3

KHJ37000

HYDRAULIC HOSE

9mm x ID 1050mm

1шт.

4

KMJ22070

BRACKET

1шт.

5

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

M12 x 25mm

2шт.

6

153526A1

ELBOW

1шт.

7

KHJ0569

ADAPTER

G1/4" x G3/8"

1шт.

8

152899A1

HYD CONNECTOR

ASSY, Incl 9

1шт.

9

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

10

158923A1

DRAIN VALVE

1шт.

11

153596A1

ADAPTER

1шт.

12

158842A1

PLUG

G1/4"

1шт.

13

150496A1

MOUNTING CLIP

250mm

1шт.
