(35.106.100) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE

Запчасти Case CX145D SR LC W/BLADE (35.106.100) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

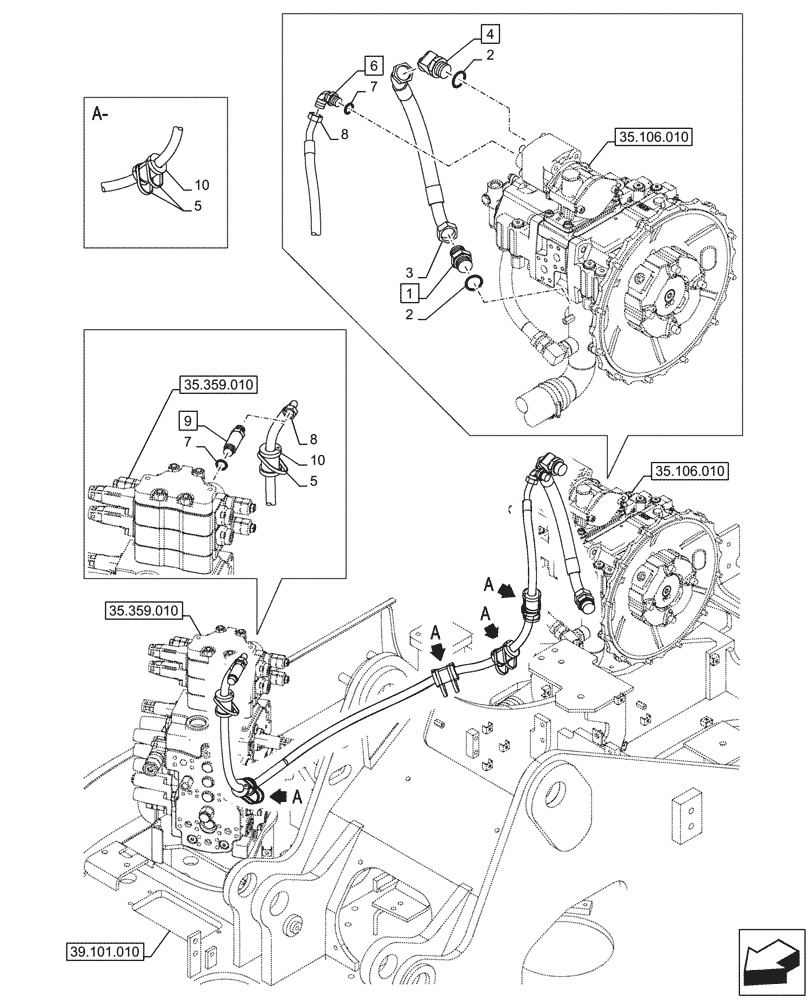

Схема запчастей Case CX145D SR LC W/BLADE - (35.106.100) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS
39.101.010
5
2
10
3
4
7
2
8
6
10
7
9
8
1
5
35.106.010
35.106.010
35.359.010
35.359.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ASSY, Incl 2

1шт.

2

152211A1

O-RING

2шт.

3

KMJ22300

HYDRAULIC HOSE

1шт.

4

157587A1

ELBOW

ASSY, Incl 2

1шт.

5

150071A1

MOUNTING CLIP

9шт.

6

KHJ28600

ELBOW

ASSY, Incl 7

1шт.

7

150539A1

O-RING

2шт.

8

KMJ22330

HYDRAULIC HOSE

1шт.

9

167645A1

FITTING

ASSY, Incl 7

1шт.

10

KHJ2021

HOSE CLAMP

5шт.
