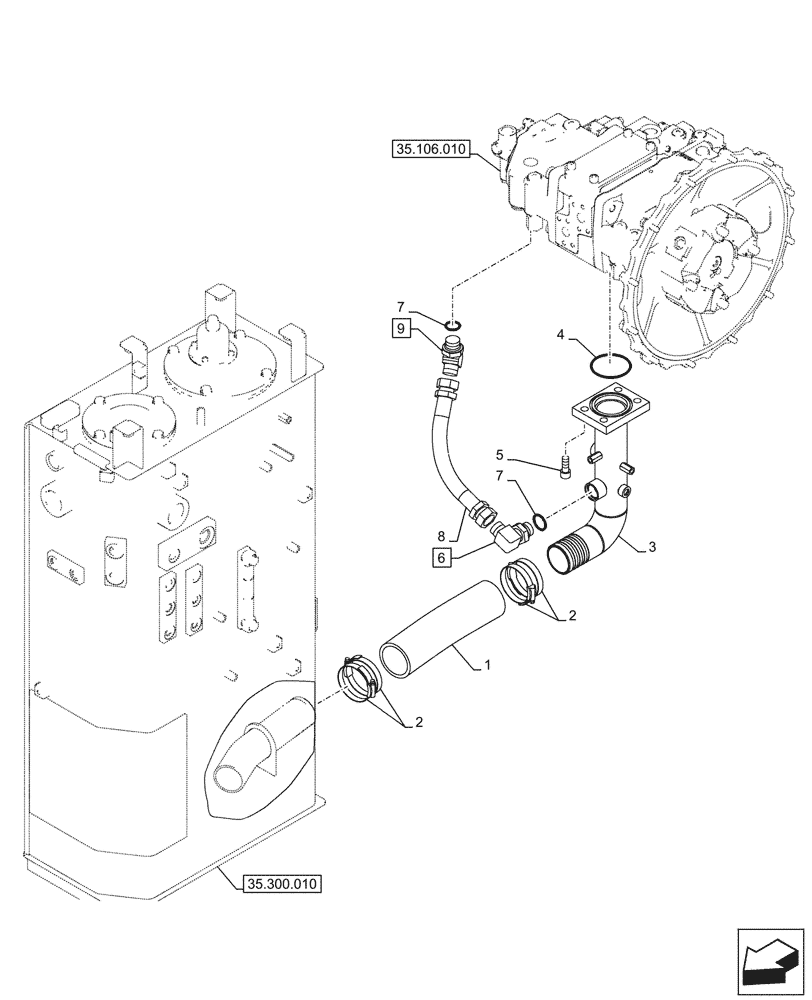

Запчасти Case CX145D SR LC W/BLADE (35.106.090) - VARIABLE DELIVERY HYDRAULIC PUMP, LINES (35) - HYDRAULIC SYSTEMS

1

KMJ1814

HOSE

L=270mm, From Variable Delivery Hydraulic Pump to Oil Tank

1шт.

2

150893A1

CLAMP

4шт.

3

KMJ22020

PIPE

From Variable Delivery Hydraulic Pump to Oil Tank

1шт.

4

KRJ1747

O-RING

1шт.

5

862-12030

HEX SOC SCREW,M12 x 30mm, Cl 12.9

M12 x 30mm

4шт.

6

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

ASSY, G3/4" x G3/4", Incl 7 (Qty 1)

1шт.

7

150542A1

O-RING

2шт.

8

KMJ22050

HYDRAULIC HOSE

L=310mm

1шт.

9

157586A1

ELBOW

ASSY, G3/4" x G3/4", Incl 7 (Qty 1)

1шт.
