(35.106.080) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE

Запчасти Case CX145D SR LC W/BLADE (35.106.080) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

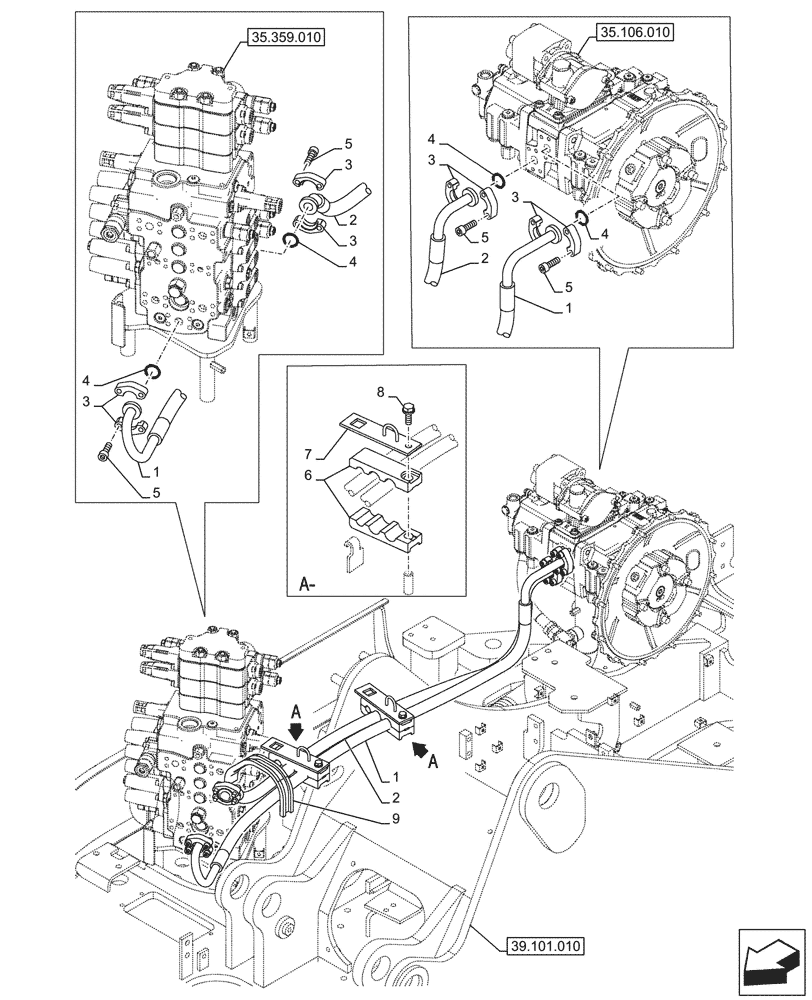

Схема запчастей Case CX145D SR LC W/BLADE - (35.106.080) - VARIABLE DELIVERY HYDRAULIC PUMP, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS
39.101.010
1
2
4
1
3
3
1
5
8
7
5
9
3
5
5
4
2
4
3
6
3
2
4
35.106.010
35.359.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMJ22320

HYDRAULIC HOSE

1шт.

2

KMJ22311

HYDRAULIC HOSE

1шт.

3

152598A1

HALF-COLLAR

8шт.

4

161097A1

O-RING

4шт.

5

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

16шт.

6

KMJ16330

CLAMP

4шт.

7

KMJ23110

PLATE

2шт.

8

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30mm

2шт.

9

KHV0497

RUBBER SEAL

22mm x 350mm

1шт.
