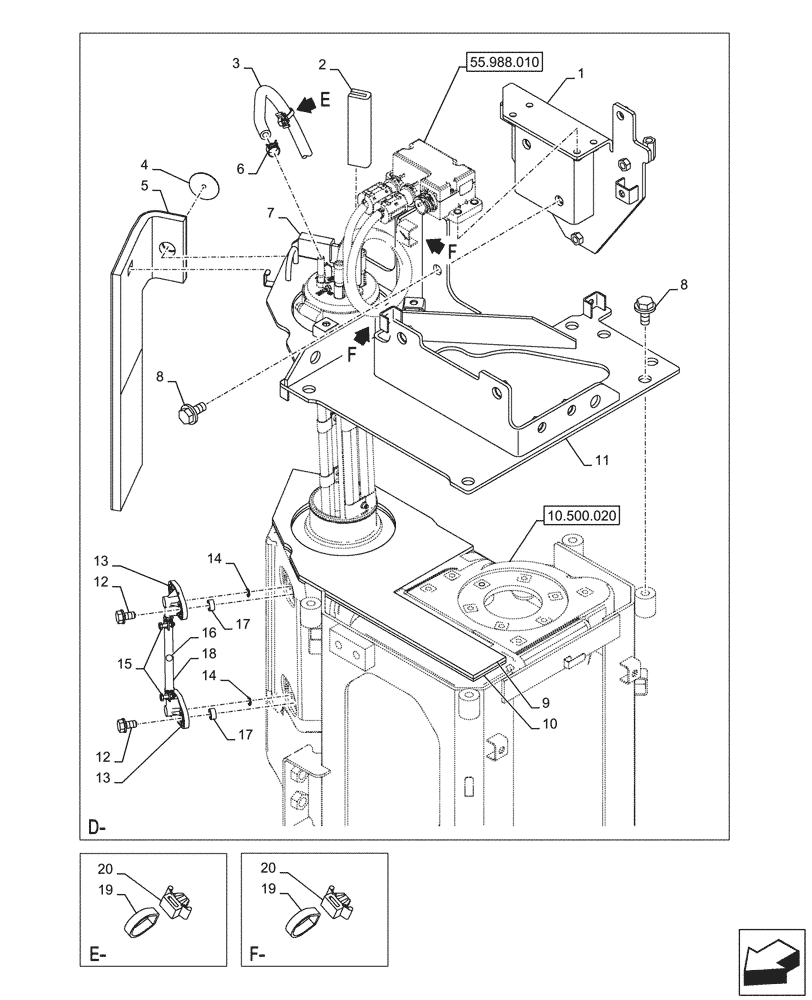

Запчасти Case CX145D SR LC W/BLADE (10.500.030) - DEF/ADBLUE™ TANK, COMPONENTS (10) - ENGINE

1

KMH14121

BRACKET

1шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

2

KNH13170

SEAL PROTECTION

L=100mm

1шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

3

157779A1

HOSE

500mm

1шт.

4

KHN35020

WASHER

2шт.

5

KHH21301

INSULATION

1шт.

6

165951A1

CLAMP

1шт.

7

KRH21270

CUSHION

L=40mm

1шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

8

KHN24890

BOLT

M10 x 25mm

5шт.

9

KRH21240

SEAL

1шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

10

KRH21250

PLATE

1шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

11

KMH14111

BRACKET

1шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

12

KHH20220

BOLT

M8 x 15mm

4шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

13

KHH20210

JOINT

2шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

14

KHH20300

O-RING

2шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

15

KHH20230

BAND

2шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

16

KHH20250

FLOAT

1шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

17

KHH20200

COLLAR

5шт.

18

KHH20240

LEVEL

1шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

19

150496A1

MOUNTING CLIP

250mm

3шт.

20

KHR10220

MOUNTING CLIP

3шт.
