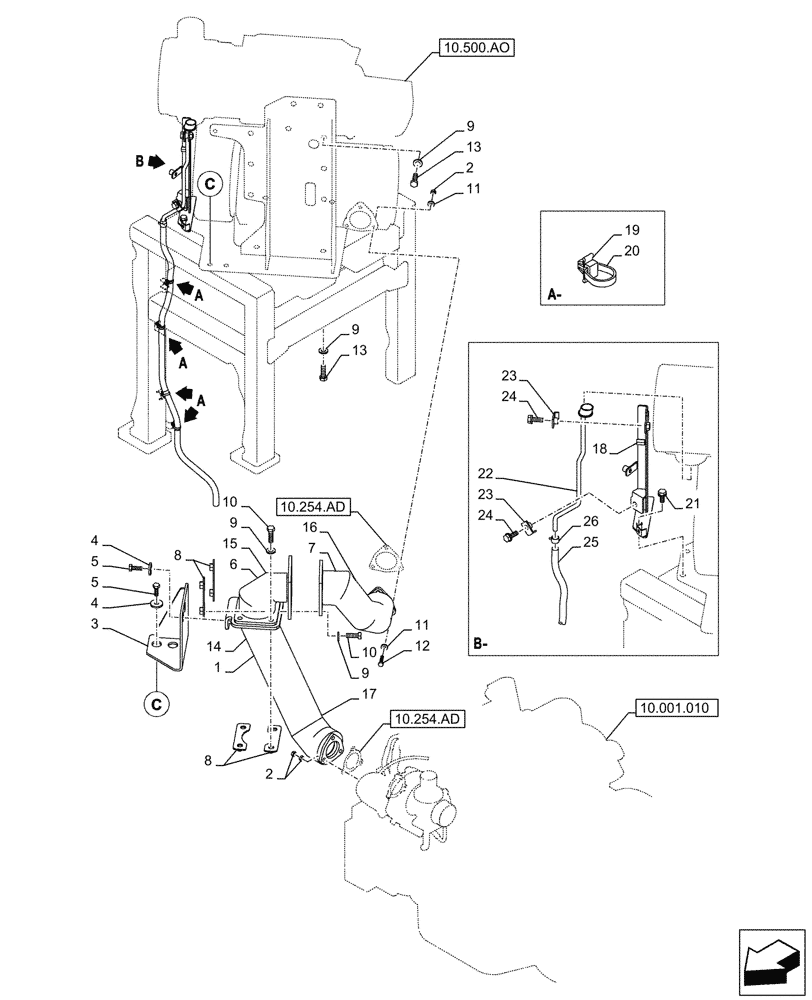

Запчасти Case CX145D SR LC W/BLADE (10.254.010) - EXHAUST SYSTEM, EXHAUST PIPE (10) - ENGINE

1

KMH13730

PIPE

1шт.

2

162R008VR

NUT

6шт.

3

KMH13850

BRACKET

1шт.

4

KHV10400

WASHER

4шт.

5

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

6

KMH13740

PIPE

1шт.

7

KMH13750

PIPE

1шт.

8

KBH12660

PLATE

4шт.

9

157547A1

SPECIAL WASHER

8шт.

10

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

11

153081A1

WASHER

6шт.

12

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

3шт.

13

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

10шт.

14

KMH13860

INSULATION

1шт.

15

KMH13870

INSULATION

1шт.

16

KMH13880

INSULATION

1шт.

17

KMH14350

INSULATION

1шт.

18

KMH14320

BRACKET

1шт.

19

KHR10220

MOUNTING CLIP

4шт.

20

150496A1

MOUNTING CLIP

4шт.

21

166052A1

BOLT

2шт.

22

KMH14330

PIPE

1шт.

23

KLH11320

CLAMP

2шт.

24

166347A1

BOLT,Sems, M10 x 30mm

2шт.

25

KHH14530

HOSE

1шт.

26

KHH0405

MOUNTING CLIP

1шт.
