(10.210.010) - VAR - 481257 - FUEL TRANSFER PUMP, SUPPLY LINE

Запчасти Case CX145D SR LC W/BLADE (10.210.010) - VAR - 481257 - FUEL TRANSFER PUMP, SUPPLY LINE (10) - ENGINE

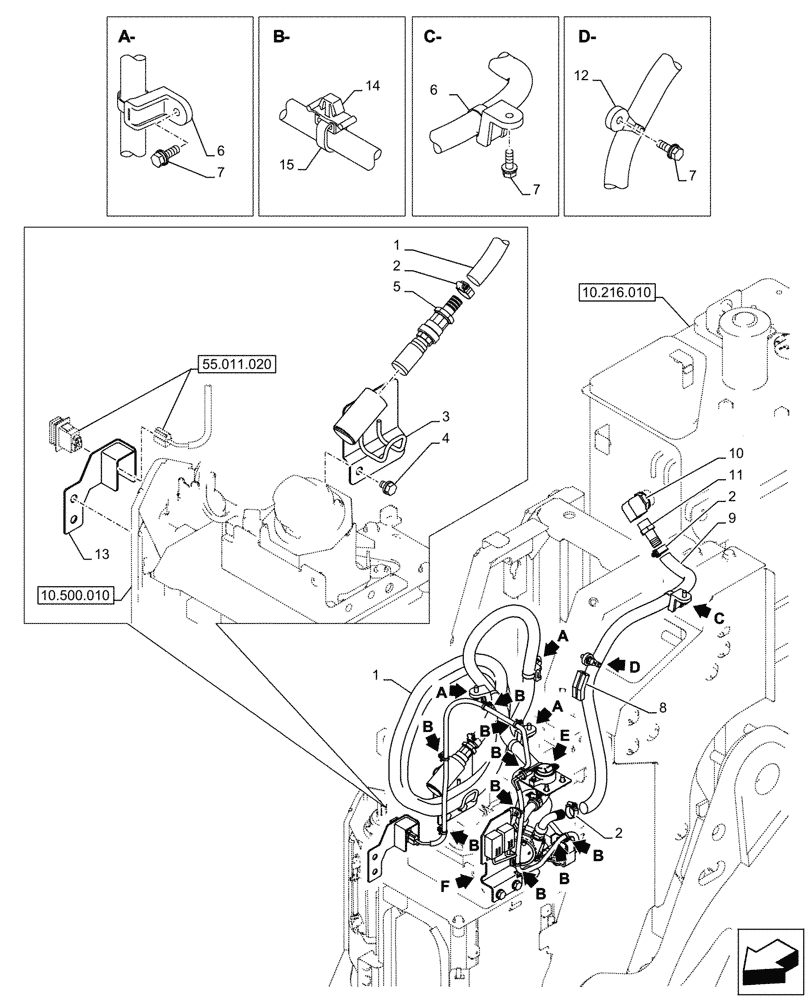

Схема запчастей Case CX145D SR LC W/BLADE - (10.210.010) - VAR - 481257 - FUEL TRANSFER PUMP, SUPPLY LINE (10) - ENGINE
55.011.020
13
2
10
7
7
2
14
12
3
4
6
1
11
9
7
1
15
5
8
6
2
10.500.010
10.216.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR48890

FUEL HOSE

From Feed Pump to Foot Valve

1шт.

2

157915A1

CLAMP

3шт.

3

KMR14330

BRACKET

1шт.

4

166346A1

BOLT,Sems, M10

M10 x 16mm

2шт.

5

KHR22150

SHUT-OFF VALVE

35 L/Min

1шт.

6

KHR2581

CLAMP

M8

4шт.

7

KHJ1215

BOLT,Spcl

M8 x 25mm

5шт.

8

KAR0991

CUSHION

L=60mm

1шт.

9

KHR17060

FUEL HOSE

L=1000mm, From Feed Pump to Fuel Tank

1шт.

10

KHJ2320

ELBOW

G3/4" x PT3/4"

1шт.

11

157933A1

NIPPLE, LUBE

3/4" x 21mm

1шт.

12

KHR2584

CLAMP

1шт.

13

KMR13831

COVER

1шт.

14

KHR10220

MOUNTING CLIP

9шт.

15

150496A1

MOUNTING CLIP

250mm

10шт.
