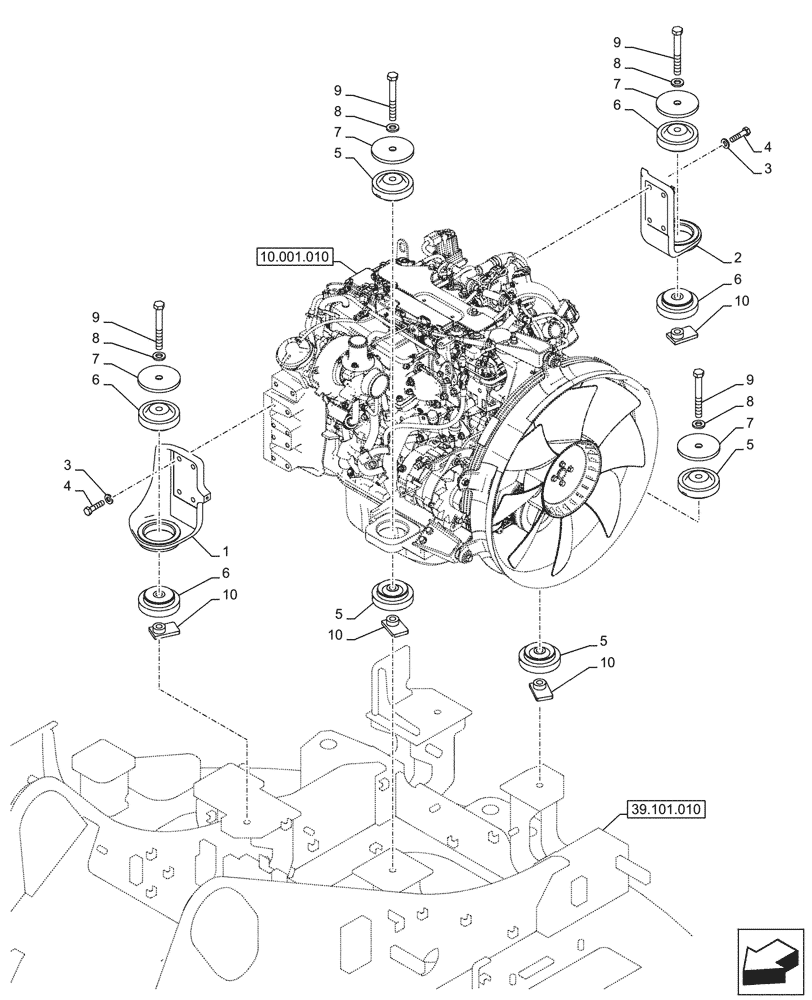

Запчасти Case CX145D SR LC W/BLADE (10.001.020) - STD + VAR - 488034 - ENGINE, SUPPORT (10) - ENGINE

1

KMH13110

SUPPORT

1шт.

2

KMH13120

SUPPORT

1шт.

3

150811A1

WASHER

8шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

8шт.

5

KAH13720

INSULATOR

4шт.

6

KNH11020

PLASTIC-RUBBER TUBE

Fan

4шт.

7

KRH10190

PLATE

4шт.

8

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

4шт.

9

827-16130

BOLT,Hex, M16 x 2 x 130mm, Cl 10.9

4шт.

10

KHH14230

NUT

M16

4шт.
