(90.160.030) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, RH

Запчасти Case CX145D SR LC W/BLADE (90.160.030) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

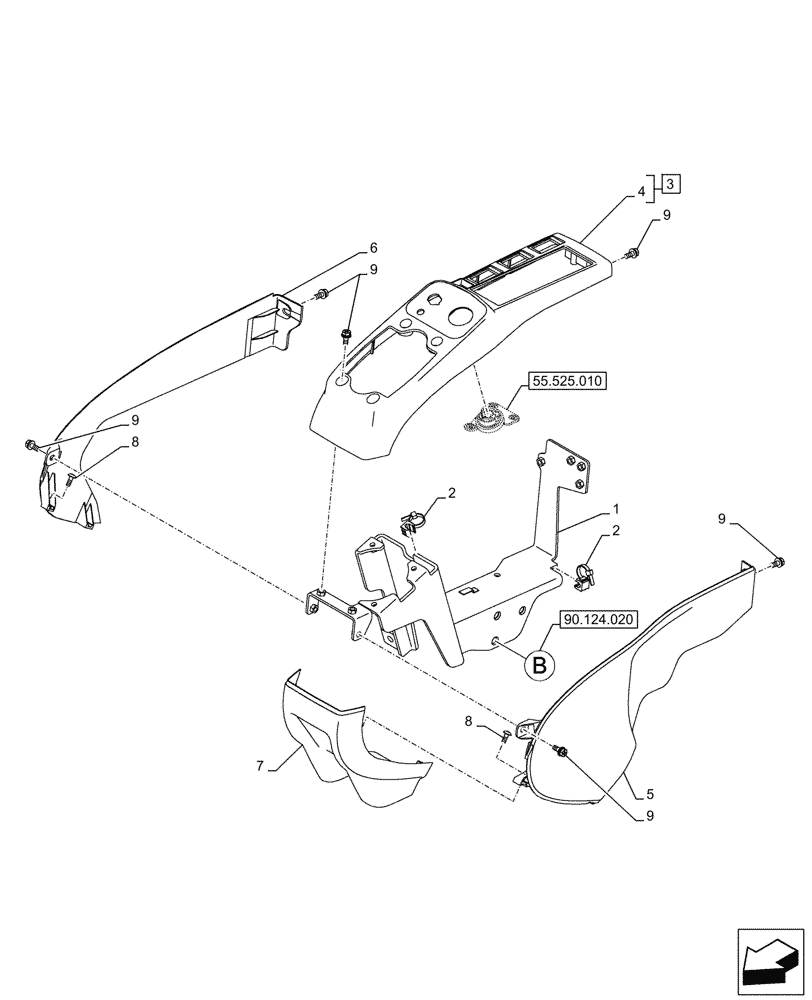

Схема запчастей Case CX145D SR LC W/BLADE - (90.160.030) - VAR - 488035, 781277 - CONSOLE, SIDE PANEL, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
55.525.010
2
9
9
8
9
1
8
6
2
7
3
4
9
5
9
90.124.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN36541

FRAME

1шт.

2

KHN17050

CLIP

4шт.

3

KHN44160

ASSY, Incl 4

COVER

1шт.

See also Figure 55.525.010

1шт.

4

KHN44170

COVER

1шт.

5

KHN37810

COVER

1шт.

6

KHN32340

COVER

1шт.

7

KHN32350

COVER

1шт.

8

KHR2737

SELF-TAP SCREW

4шт.

9

KHN2132

BOLT,Hex Flg Hd, M6 x 16

19шт.
