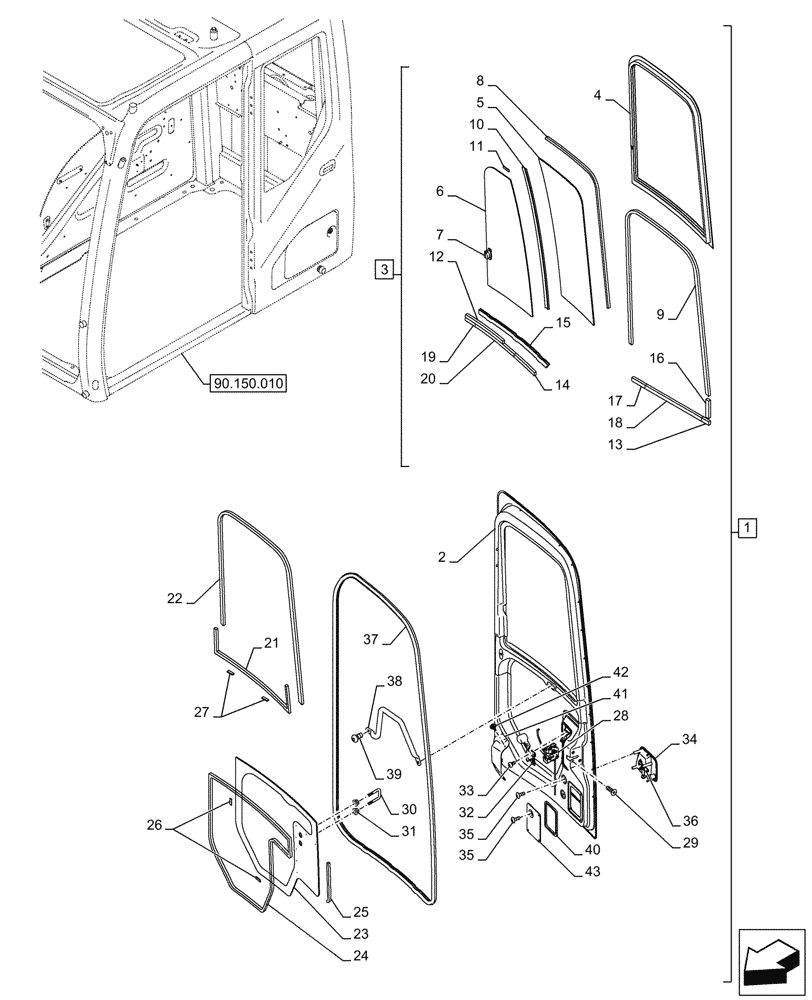

Запчасти Case CX145D SR LC W/BLADE (90.154.010) - CAB DOOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN29800

DOOR

ASSY, Incl 2 - 43

1шт.

2

KHN29830

DOOR

1шт.

3

KHN31650

WINDOW FRAME

ASSY, Incl 4 - 20

1шт.

4

KHN31660

WINDOW FRAME

1шт.

5

KHN31670

GLASS

1шт.

6

KHN31680

GLASS

1шт.

7

KHN3424

LOCK

1шт.

8

KHN31700

RAIL ASSY.

1шт.

9

KHN31710

RAIL ASSY.

1шт.

10

KHN31720

SEAL

1шт.

11

KHN31730

STOP

1шт.

12

KHN31740

STOP

1шт.

13

KHN31750

STOP

1шт.

14

KHN31760

STOP

1шт.

15

KHN33920

RAIL ASSY.

1шт.

16

KHN33930

SEAL

1шт.

17

KHN33940

SPACER

1шт.

18

KHN33950

SPACER

1шт.

19

KHN33960

SPACER

1шт.

20

KHN33970

SPACER

1шт.

21

KHN31770

SEAL

1шт.

22

KHN31780

SEAL

1шт.

23

KHN31800

GLASS

1шт.

24

KHN31810

SEAL

1шт.

25

KHN31820

SEAL

1шт.

26

KHN31830

SPACER

2шт.

27

KAN2662

SPACER

2шт.

28

KHN31840

LH DOOR LOCK

1шт.

29

KHN31870

BOLT

3шт.

30

KHN31910

STRIKER

1шт.

31

KHN3097

SPECIAL NUT

4шт.

32

KHN31940

KNOB

1шт.

33

KAN2641

SCREW,Spcl

3шт.

34

KHN15570

HANDLE

1шт.

35

KHN3051

SCREW,Spcl

6шт.

36

KHN15650

RUBBER JOINT

1шт.

37

KHN31950

SEAL

1шт.

38

KHN31960

RAIL ASSY.

1шт.

39

KHN31970

BOLT

2шт.

40

KHN31980

SEAL

1шт.

41

KHN31990

COVER

1шт.

42

KHN30520

PIN

3шт.

43

KHN32000

COVER

1шт.
