(90.150.030) - VAR - 461024 - CAB GUARD, FRONT, STONEGUARD, FIXED

Запчасти Case CX145D SR LC W/BLADE (90.150.030) - VAR - 461024 - CAB GUARD, FRONT, STONEGUARD, FIXED (90) - PLATFORM, CAB, BODYWORK AND DECALS

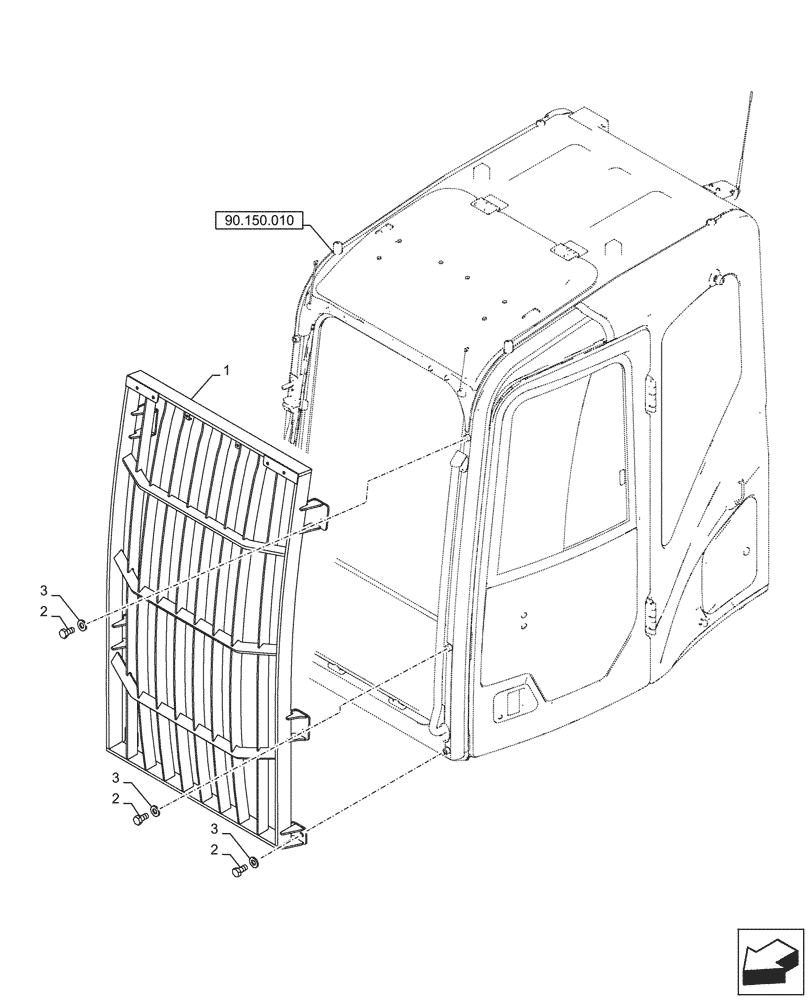

Схема запчастей Case CX145D SR LC W/BLADE - (90.150.030) - VAR - 461024 - CAB GUARD, FRONT, STONEGUARD, FIXED (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.010
3
2
3
2
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN32861

GUARD

1шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

M12 x 25mm

6шт.

3

150811A1

WASHER

6шт.
