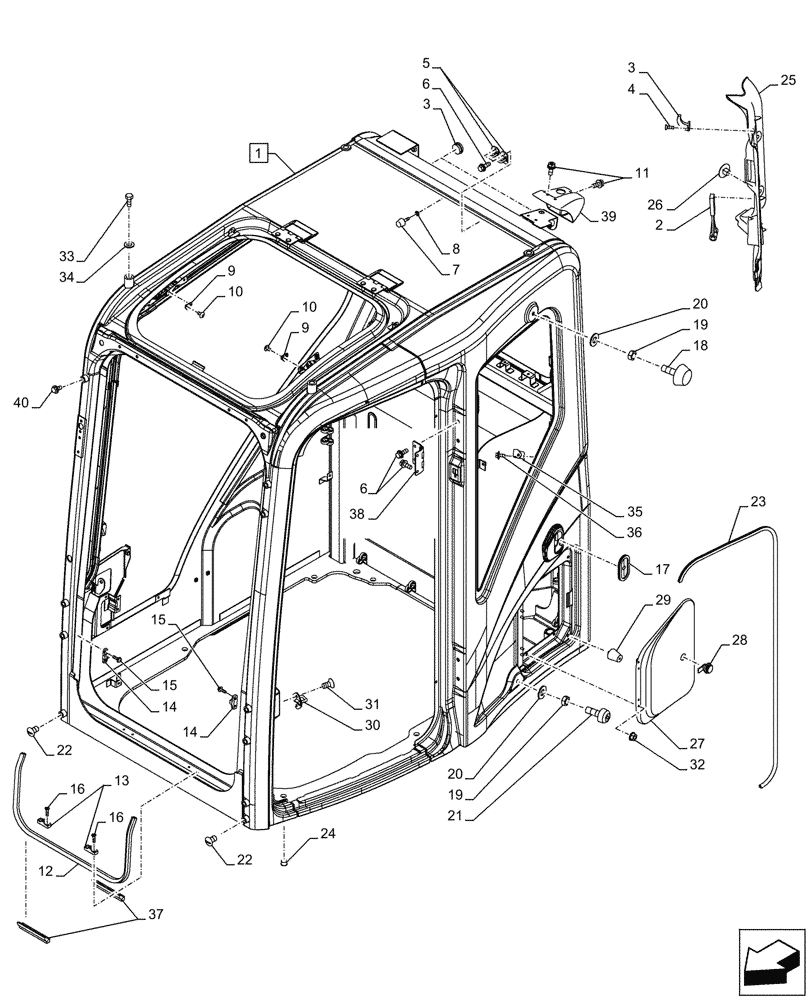

Запчасти Case CX145D SR LC W/BLADE (90.150.010) - CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN48260

CAB

ASSY, Incl 2 - 40

1шт.

See also Figure 90.150.090, 90.151.020, 90.154.010, 90.156.010, 90.156.020, 90.160.070, 90.118.030, 55.518.020, 55.512.020, 55.512.030, 55,991,010

1шт.

2

KHN25950

HAMMER

1шт.

3

KHN30340

HOOK

1шт.

4

KHN30350

SCREW

2шт.

5

KHN30550

STRIKER

2шт.

6

KHN30560

BOLT

14шт.

7

KHN30570

STOP

1шт.

8

KHN30580

NUT

1шт.

9

KHN30620

STOP

2шт.

10

KHN30630

SCREW

4шт.

11

KAN1514

SCREW

8шт.

12

KHN30680

STRIP

1шт.

13

KHN3053

SPACER

2шт.

14

KHN30690

SPACER

2шт.

15

KHN3084

SCREW,Spcl

4шт.

16

KHN30700

SCREW

4шт.

17

152401A1

GROMMET

1шт.

18

KAN2751

STOP

1шт.

19

KAN2636

NUT

2шт.

20

KAN2778

WASHER

2шт.

21

KHN31190

STOP

1шт.

22

KHN31200

CAP

6шт.

23

KHN31230

DOOR SEAL

1шт.

24

KHN31260

CAP

4шт.

25

KHN31530

TRIM

1шт.

26

KHN31560

CLIP

4шт.

27

KHN31620

COVER

1шт.

28

KHN31630

LOCK CYLINDER

1шт.

29

KHN31640

STOP

2шт.

30

KHN31850

STRIKER

1шт.

31

KHN31860

BOLT

2шт.

32

KAN2629

SPECIAL NUT

8шт.

33

KHN34000

BOLT

4шт.

34

KHN34010

WASHER

4шт.

35

KHN34700

BRACKET

1шт.

36

KHN31510

BOLT

1шт.

37

KHN48200

STRIP

2шт.

38

KHN29840

HINGE

1шт.

39

KHN27450

COVER

1шт.

40

KHN31220

BOLT

4шт.
