(90.124.020) - VAR - 488035, 781277 - SEAT, AIR SUSPENSION, BASE PLATE, ARMREST

Запчасти Case CX145D SR LC W/BLADE (90.124.020) - VAR - 488035, 781277 - SEAT, AIR SUSPENSION, BASE PLATE, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS

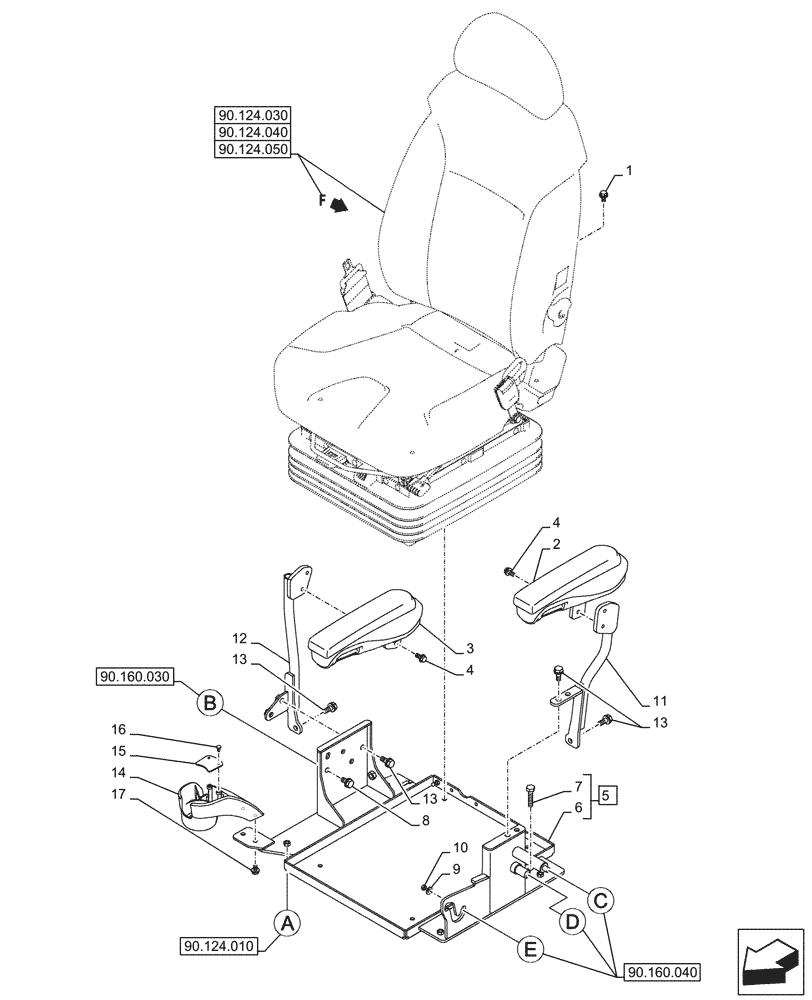

Схема запчастей Case CX145D SR LC W/BLADE - (90.124.020) - VAR - 488035, 781277 - SEAT, AIR SUSPENSION, BASE PLATE, ARMREST (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.010
13
17
10
1
14
13
3
15
11
5
12
4
9
6
8
16
2
13
7
4
90.160.030
90.124.040
90.124.030
90.160.040
90.124.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

166350A1

BOLT

M8 x 2mm

4шт.

2

KHN32110

ARMREST

1шт.

3

KHN32120

ARMREST

1шт.

4

KHN17270

BOLT,Spcl

M8 x 2mm

4шт.

5

KHN48640

BRACKET

ASSY, Incl 6 - 7

1шт.

See also Figure 90.124.010

1шт.

6

KHN44141

BASE PLATE

1шт.

7

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

M1 x 45mm

1шт.

8

166351A1

BOLT,Sems, M10 x 20mm

M1 x 2mm

3шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

10

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

11

KHN24340

BASE

1шт.

12

KHN36570

BASE

1шт.

13

166052A1

BOLT

M1 x 25mm

6шт.

14

KHN23220

HOLDER

1шт.

15

KHN14760

PLATE

1шт.

16

KHN2470

CLIP

2шт.

17

KHN13540

BOLT,Spcl

2шт.
