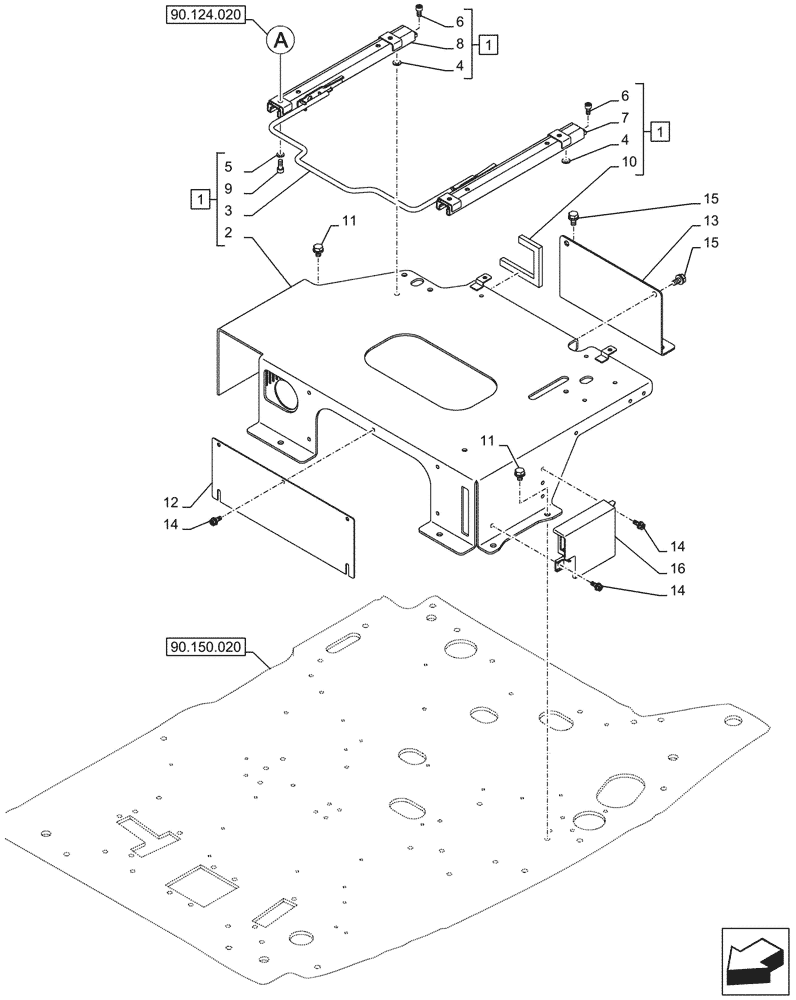

Запчасти Case CX145D SR LC W/BLADE (90.124.010) - VAR - 488035, 781277 - SEAT, AIR SUSPENSION, GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

KHN48640

BRACKET

ASSY, Incl 2 - 10

1шт.

See also Figure 90.124.020

1шт.

2

KHN48630

BASE PLATE

1шт.

3

KHN21960

LEVER

1шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

5

183-108VR

SPRING WASHER

4шт.

6

108R008Y016R

BOLT

M8 x 16mm

4шт.

7

KHN13431

SLIDE GUIDE

1шт.

8

KHN13421

SLIDE GUIDE

1шт.

9

108R008Y020R

HEX SOC SCREW

M8 x 2mm

4шт.

10

KHN32850

SEAL

1шт.

11

166346A1

BOLT,Sems, M10

M1 x 16mm

5шт.

12

KHN21910

COVER

1шт.

13

KHN44370

COVER

1шт.

14

KHN2132

BOLT,Hex Flg Hd, M6 x 16

M6 x 16mm

7шт.

15

166351A1

BOLT,Sems, M10 x 20mm

M1 x 2mm

4шт.

16

KHN47250

COVER

1шт.
