(90.118.010) - REAR VIEW MIRROR, OUTSIDE

Запчасти Case CX145D SR LC W/BLADE (90.118.010) - REAR VIEW MIRROR, OUTSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

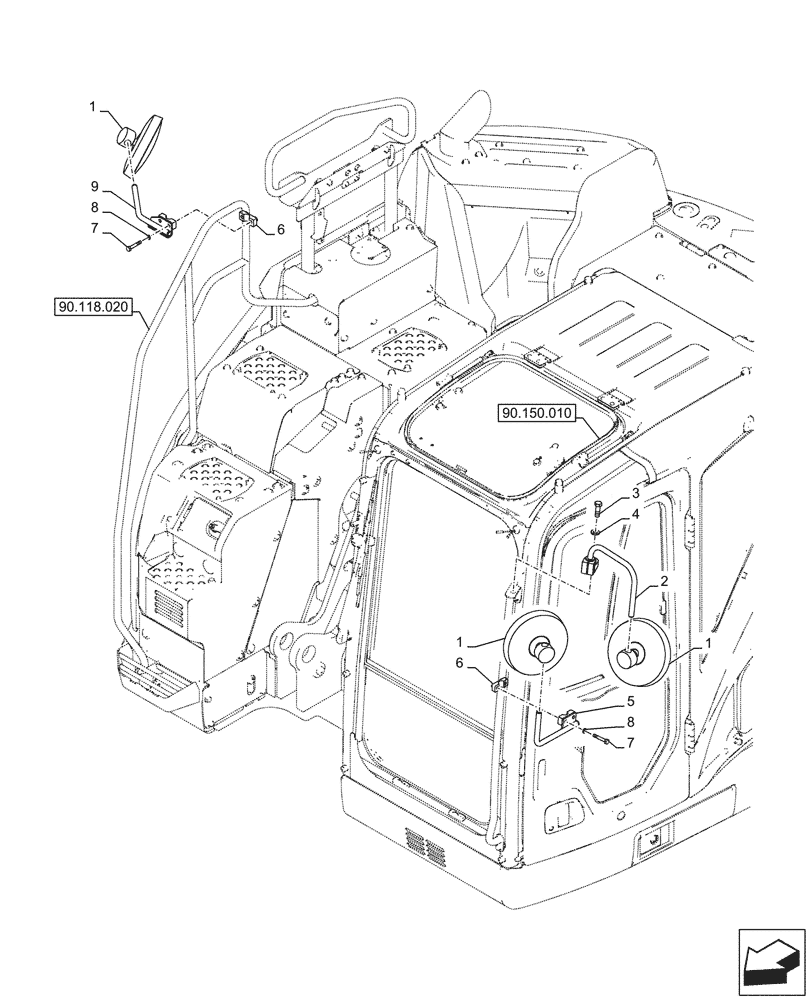

Схема запчастей Case CX145D SR LC W/BLADE - (90.118.010) - REAR VIEW MIRROR, OUTSIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.118.020
6
8
2
1
9
3
1
5
4
7
7
1
8
6
90.150.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHP15130

REAR VIEW MIRROR

3шт.

2

KHP11350

SUPPORT

1шт.

3

KHP15020

BOLT,Hex

M16 x 50mm

1шт.

4

157528A1

WASHER

1шт.

5

KMP14900

STAY

1шт.

6

KHP33430

CLAMP

2шт.

7

828-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

M10 x 60mm

4шт.

8

892-11010

LOCK WASHER,M10

4шт.

9

KMP14910

STAY

1шт.
