(86.110.050) - VAR - 481064 - COVER, PIN, LIFT CYLINDER, BLADE, SAFETY VALVE

Запчасти Case CX145D SR LC W/BLADE (86.110.050) - VAR - 481064 - COVER, PIN, LIFT CYLINDER, BLADE, SAFETY VALVE (86) - DOZER

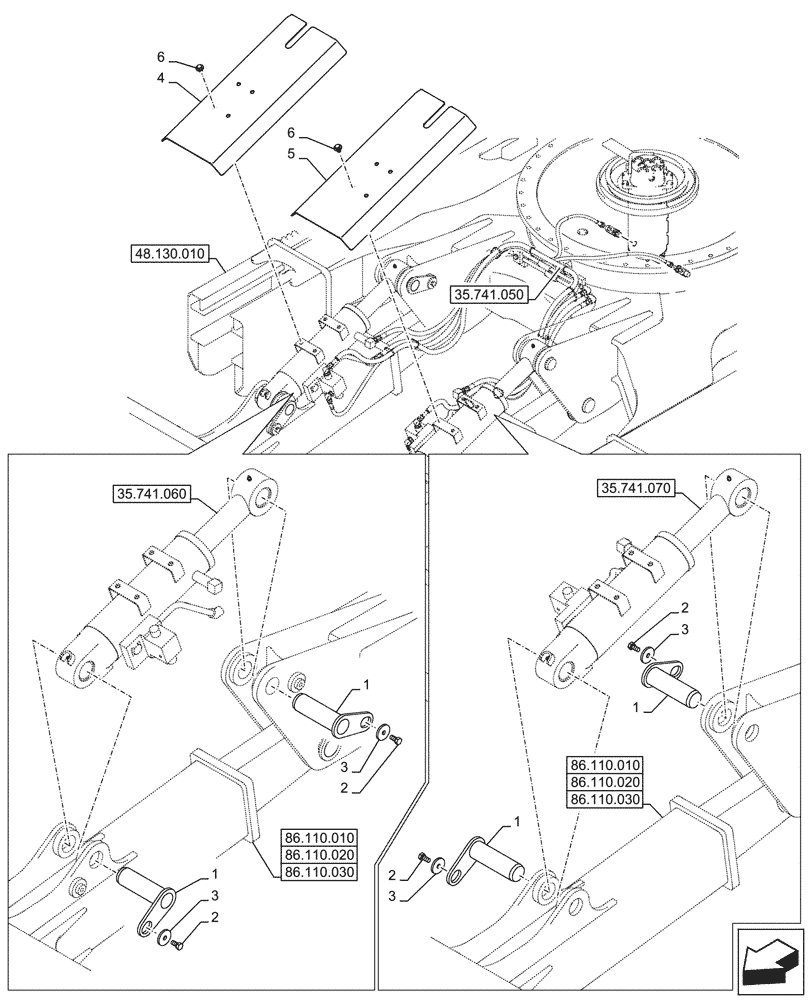

Схема запчастей Case CX145D SR LC W/BLADE - (86.110.050) - VAR - 481064 - COVER, PIN, LIFT CYLINDER, BLADE, SAFETY VALVE (86) - DOZER
48.130.010
2
3
1
2
2
3
1
2
6
3
4
1
6
5
1
3
86.110.030
86.110.030
86.110.010
86.110.010
35.741.070
35.741.060
86.110.020
86.110.020
35.741.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KMV15670

PIN

4шт.

2

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

3

157141A1

WASHER

M12

4шт.

4

KMV18660

COVER

1шт.

5

KMV18670

COVER

1шт.

6

167893A1

BOLT

8шт.
