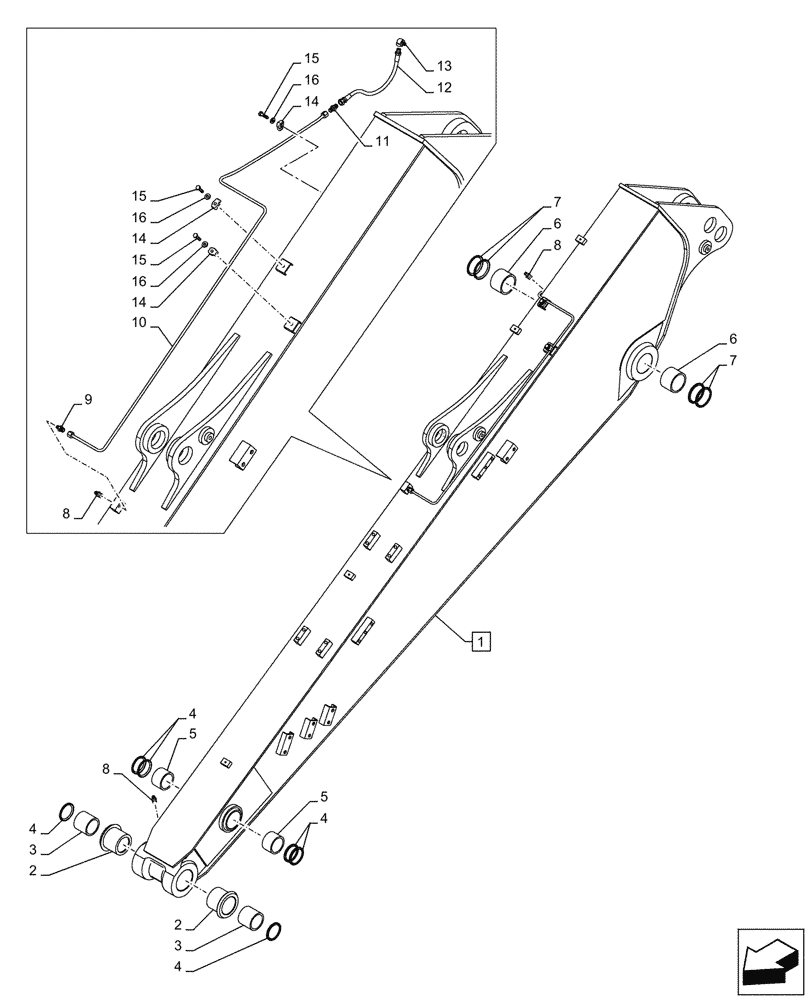

Запчасти Case CX145D SR LC W/BLADE (84.912.020) - VAR - 781178 - QUICK COUPLER, ARM (L=3.0 M) (84) - BOOMS, DIPPERS & BUCKETS

1

KNV29580

DIPPER

ASSY, Incl 2 - 7

1шт.

2

KNV1130

BUSHING

2шт.

3

KNV17560

BUSHING

2шт.

4

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

6шт.

5

KNV1138

BUSHING,65mm ID x 80mm OD x 50mm L

2шт.

6

KNV1144

SELF LUB RING

2шт.

7

160400A1

SEAL,75mm ID x 90mm OD x 5mm Thk

4шт.

8

153630A1

LUBE NIPPLE

3шт.

9

152599A1

MULTIPOLE CONNECTOR

1шт.

10

KNV17350Y2

HYD TUBE

1шт.

11

152032A1

UNION

1шт.

12

153698A1

HOSE

1шт.

13

163319A1

ELBOW

1шт.

14

151504A1

CLAMP

3шт.

15

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

M8 x 30mm

3шт.

16

153081A1

WASHER

3шт.
