(55.988.010) - DEF/ADBLUE™ TANK, LEVEL, SENSOR

Запчасти Case CX145D SR LC W/BLADE (55.988.010) - DEF/ADBLUE™ TANK, LEVEL, SENSOR (55) - ELECTRICAL SYSTEMS

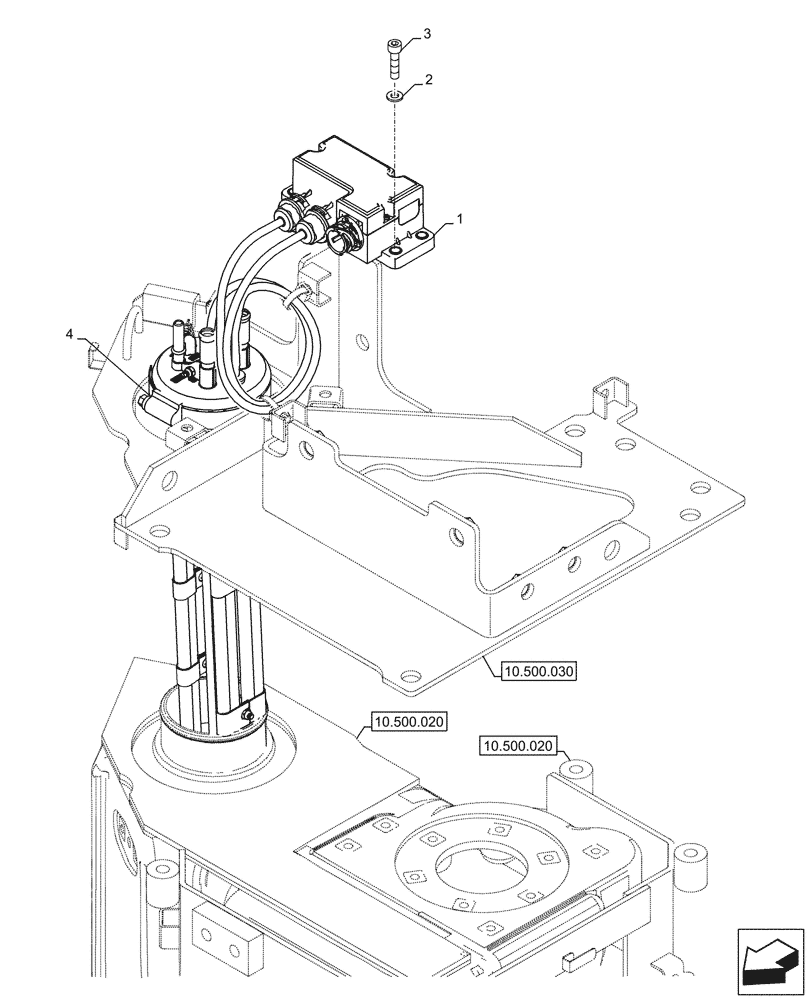

Схема запчастей Case CX145D SR LC W/BLADE - (55.988.010) - DEF/ADBLUE™ TANK, LEVEL, SENSOR (55) - ELECTRICAL SYSTEMS
10.500.020
3
4
1
2
10.500.030
10.500.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KRH20910

SENSOR

1шт.

2

183-106VR

SPRING WASHER

4шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

3

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

M6 x 25mm

4шт.

Part is included in Urea Tank Assembly PN KMH13761

1шт.

4

164968A1

COLLAR

1шт.
