(55.950.010) - VAR - 461869 - SELECTOR, VALVE, HARNESS, HAMMER CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX145D SR LC W/BLADE (55.950.010) - VAR - 461869 - SELECTOR, VALVE, HARNESS, HAMMER CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

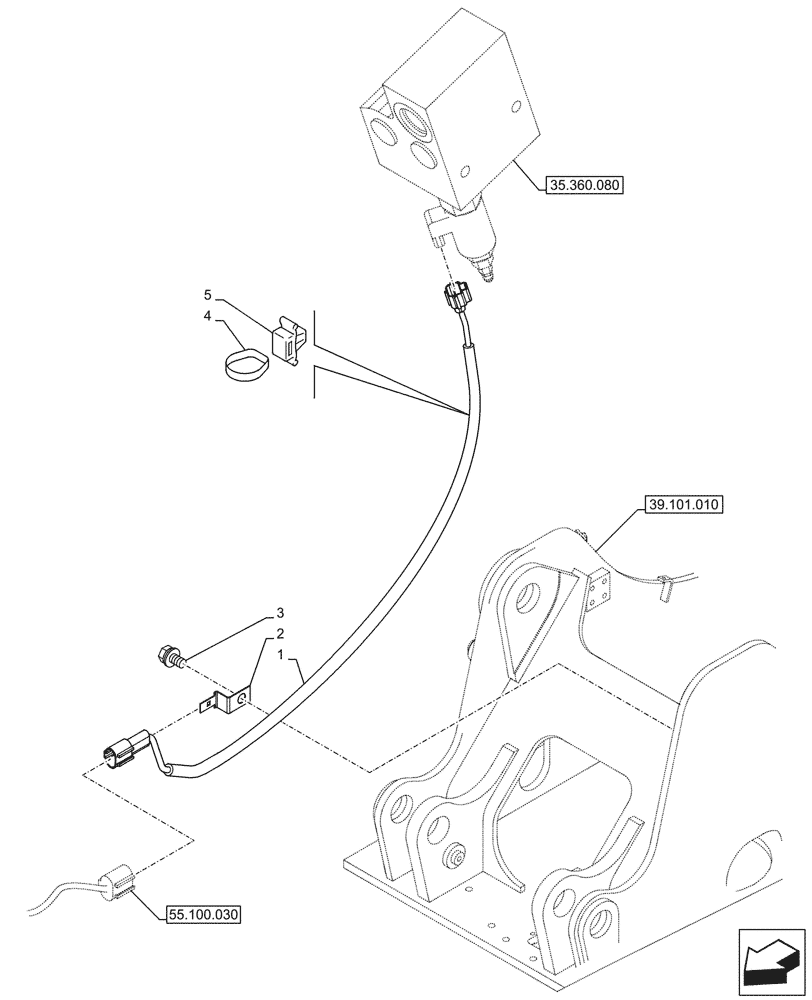

Схема запчастей Case CX145D SR LC W/BLADE - (55.950.010) - VAR - 461869 - SELECTOR, VALVE, HARNESS, HAMMER CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
39.101.010
2
1
4
3
5
35.360.080
55.100.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR25520

WIRE HARNESS

1шт.

2

158962A1

CLIP

1шт.

3

167518A1

BOLT

M8 x 16mm

1шт.

4

150496A1

MOUNTING CLIP

250mm

1шт.

5

KHR10220

MOUNTING CLIP

1шт.
