(55.510.040) - VAR - 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX145D SR LC W/BLADE (55.510.040) - VAR - 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS

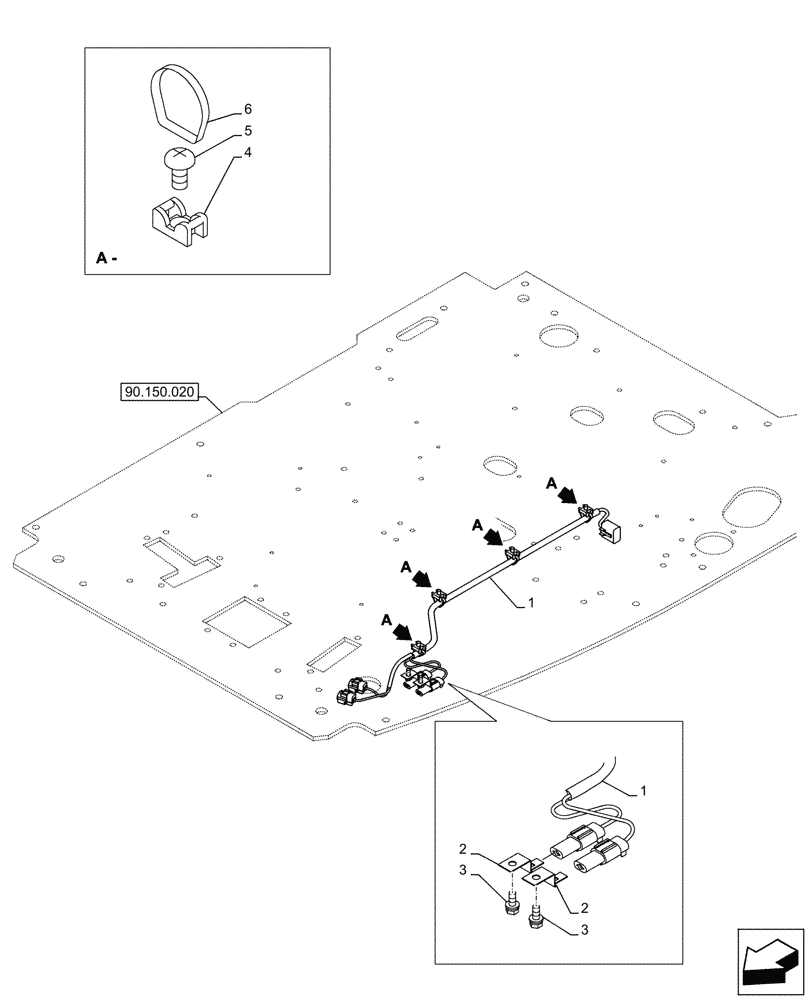

Схема запчастей Case CX145D SR LC W/BLADE - (55.510.040) - VAR - 461863 - OPTION, HARNESS, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (55) - ELECTRICAL SYSTEMS
90.150.020
1
3
3
2
5
1
6
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHR50920

WIRE HARNESS

1шт.

2

165405A1

CLIP

2шт.

3

159602A1

BOLT,Sems, Hex, M6 x 16mm

M6 x 16mm

2шт.

4

150860A1

COLLAR

1шт.

5

145N006S008R

SCREW,Pan Hd, M6 x 8mm, Cl 10.9

M6 x 8mm

1шт.

6

150496A1

MOUNTING CLIP

250mm

1шт.

Выбрано товаров: 6
